VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology

I'm Online Chat Now

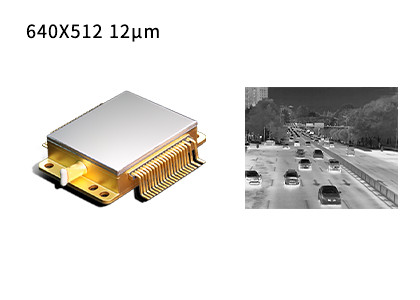

VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology

VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology
VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology

Large Image :  VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST612M
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <30mK
Spectral Range: 8~14μm Size: 30x19.8x7.32mm
Frame Rate: 50/60Hz Thermal Response Time: <12ms
High Light:

Uncooled Focal Plane Detector

,

Focal Plane Detector 640x512

,

Mature Focal Plane Detector

Brief Description



640x512 / 12μm VOx Uncooled Focal Plane Detector with High Quality Thermal Imaging



Product Description



GST612M is one of the metal packing uncooled infrared detectors developed by Global Sensor Technology (GST). GST612M uncooled focal plane array detector uses the international mainstream vanadium oxide material which makes it own more outstanding comprehensive performance. With standard 640x512 VGA format at 12μm, the GST612M IR FPA detector will exceed your most demanding requirements.



GST612M uncooled microbolometer detector has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.



Now microbolometer detector is a mainstream uncooled infrared focal plane detector in the market and has the most mature technology and the highest market share. Also due to its characteristics of low cost, small size, low power consumption and long operation life, VOx microbolometer has been a perfect choice in various infrared fields.



Main Features



- NETD<30mk, High Sensitivity
- Mature Technology
- Stable Performance
- Long Operating Life
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model GST612M
Material VOx
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Power Consumption <220mW
Dimension (mm) 30x19.8x7.32
Weight <20g
Operation Temperature -40°C ~ +85°C



Industrial Applications


The GST612M thermal imaging detector is widely used in many areas, such as Thermography, Security / Monitoring, Outdoors, Law Enforcement / Rescue, ADAS, UAV Payloads etc.

VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology 0



About Global Sensor Technology



VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology 1

FAQs



1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
