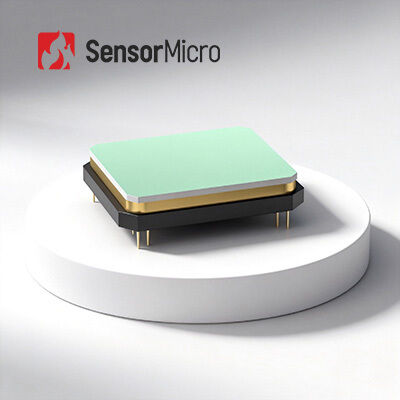

Mega Pixel Large Array Uncooled Infrared Detector with 1280x1024 Resolution and 12μm Pixel Size Using Vanadium Oxide Material

  • Mega Pixel Large Array Uncooled Infrared Detector with 1280x1024 Resolution and 12μm Pixel Size Using Vanadium Oxide Material
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex1212C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Material Vanadium Oxide Resolution 1280x1024 / 12μm
Type Ceramic Package NETD ＜35mK
Spectral Range 8~14μm Size 31×31×5.1mm(Without Pin)
Highlight

Large Array Uncooled Infrared Detectors

,

Uncooled Infrared Detectors 1280x1024
Leave a Message
Product Description
Mega Pixel Large Array Uncooled Infrared Detectors 1280x1024 12μm Mature Technology
Product Overview
The Apex1212C is a metal-packaged uncooled VOx microbolometer infrared detector featuring large array 1280x1024 resolution with 12μm pixel size. Utilizing international mainstream vanadium oxide material, this long wave infrared sensor delivers outstanding comprehensive performance for demanding applications.
Key Features
  • NETD <35mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Technical Specifications
Model Apex1212C
Sensitive Material VOx
Package Ceramic
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD ＜35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤400mW
Size(mm) 31×31×5.1(Without Pin)
Weight(g) ﹤15
Operating Temperature -40℃ ~ +85℃
Industrial Applications
The Apex1212C uncooled FPA detector is widely used in thermography, security & monitoring, outdoors, law enforcement & rescue, ADAS, and various industrial applications.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs. We empower people and systems to see beyond the surface—into the patterns, problems, and possibilities that lie beneath. By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity.
Frequently Asked Questions
What is the difference between uncooled and cooled IR detectors?
There are currently two types of infrared thermal imaging sensors on the market: cooled and uncooled. Uncooled IR detectors operate at ambient temperature and are based on semiconductor technology, allowing for high-volume production with small size and low cost. They are widely used in portable/handheld/mobile devices. Cooled IR detectors are packaged in units that maintain extremely low temperatures using cryo coolers, making them larger, more expensive, and less reliable due to complex cooling systems. However, cooled systems offer incredible sensitivity and typically work with long focal length optics for long-range missions.
