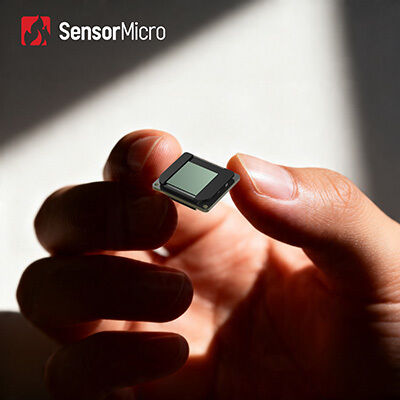

400x300 Resolution 17μm Pixel Pitch Vanadium Oxide Uncooled Infrared Detector Focal Plane Array

  • 400x300 Resolution 17μm Pixel Pitch Vanadium Oxide Uncooled Infrared Detector Focal Plane Array
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Type Microbolometer Resolution 400x300
Spectral Range 8~14μm Pixel Pitch 17μm
Material Vanadium Oxide Size 18x16x2.8mm
Weight ＜2g NETD ＜40mK
Highlight

Focal Plane Array Uncooled Infrared Detector

,

Uncooled Infrared Detector 400x300
Leave a Message
Product Description
Focal Plane Array Uncooled Infrared Detector 400x300 / 17μm VOx Material
Product Overview

400x300 / 17 μm Focal Plane Array Uncooled Infrared Detectors for Infrared Cameras

The Apex417W is a Wafer Level Packing (WLP) VOx uncooled focal plane array detector featuring compact size, lightweight design, low thermal noise, and fast response. With a resolution of 400x300 and pixel size of 17μm, its optimized microbolometer structure delivers superior sensitivity for long wavelength detection between 8 and 14 µm.

This uncooled microbolometer produces sharp thermal image quality suitable for diverse industrial applications including thermography, security monitoring, firefighting, autonomous driving, and personal vision systems.

Main Features
  • Fully optimized for SWaP-C applications
  • Compatible with various infrared products
  • Broad thermal imaging application range
  • Fast supply chain with high-volume production capability
Product Specifications
Model Apex417W
Sensitive Material VOx
Package Wafer-Level
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD ＜40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤180mW
Size(mm) 18×16
Weight(g) ﹤2
Operating Temperature -40℃~ +85℃
Industrial Applications
  • Thermography
  • Security & Monitoring
  • Outdoor Applications
  • ADAS (Advanced Driver Assistance Systems)
  • Intelligent Hardware
  • Smart Building
  • Smart Home
  • AIoT (Artificial Intelligence of Things)
Customized Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. What is infrared thermal imaging?

Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects. By detecting radiation differences between objects and their background environment, as well as variations within objects themselves, infrared thermal images display radiation fluctuations across scenes, revealing distinctive characteristics.

2. What are the advantages of infrared thermal imaging?
  • See through total darkness
  • Identification under camouflage
  • Long range detection
  • Heat distribution detection
  • Non-contact temperature measurement
  • Occupation awareness
3. What are the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging represent the two fundamental functions of infrared thermal imaging technology. Products developed using these technologies are widely deployed across traditional fields including electric power, security & monitoring, industrial manufacturing, scientific research, and medical applications.
