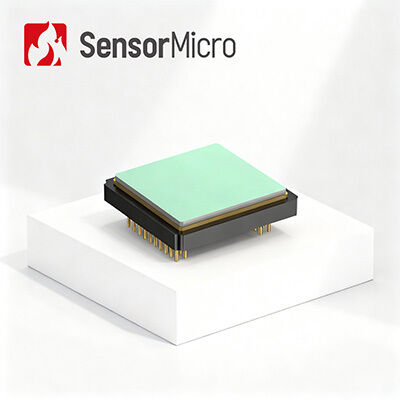

VOx Uncooled Focal Plane Detector with 640x512 Resolution and 12μm Pixel Size Featuring Mature Technology

  • VOx Uncooled Focal Plane Detector with 640x512 Resolution and 12μm Pixel Size Featuring Mature Technology
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex612C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 / 12μm NETD ＜35mK
Spectral Range 8~14μm Size 18.5×18.5×3.78mm
Frame Rate 50/60Hz Thermal Response Time ＜12ms
Highlight

Uncooled Focal Plane Detector

,

Focal Plane Detector 640x512

,

Mature Focal Plane Detector
Leave a Message
Product Description
VOx Uncooled Focal Plane Detector 640x512 12μm Mature Technology
640x512 / 12 μm VOx Uncooled Focal Plane Detector with High Quality Thermal Imaging

Apex612C is one of the ceramic packaging uncooled infrared detectors. This uncooled focal plane array detector uses the international mainstream vanadium oxide material, providing outstanding comprehensive performance. With standard 640x512 VGA format at 12μm, the Apex612C IR FPA detector exceeds demanding requirements.

The Apex612C uncooled microbolometer detector offers high sensitivity and stable performance characteristics, delivering clear imaging quality in various harsh working environments including total darkness, thick fog, heavy rain, snow, and sand storms.

Microbolometer detectors represent the mainstream uncooled infrared focal plane detector technology in the market, featuring mature technology and the highest market share. With characteristics of low cost, small size, low power consumption, and long operation life, VOx microbolometer is an ideal choice for various infrared applications.

Main Features
  • NETD<35mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Product Specifications
Model Apex612C
Sensitive Material VOx
Package Ceramic
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <150mW
Size(mm) 18.5×18.5×3.78
Weight(g) <4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications
The Apex612C thermal imaging detector is widely used in many areas, including Thermography, Security/Monitoring, Outdoors, Law Enforcement/Rescue, ADAS, and more.
Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references for seamless implementation
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
  • Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detectors operate without cooling devices and work at room temperature. They offer advantages including fast startup, low power consumption, small size, light weight, long lifespan, and low cost.
What are the key considerations for an infrared detector/thermal module for your application?
Key considerations include detector resolution, pixel size, NETD, image quality, lens options, power consumption, size and weight, mechanical & electrical interface, and budget requirements.
