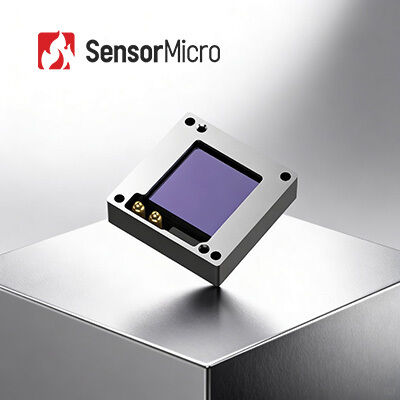

High Resolution 640x512 12μm FPA Uncooled IR Detector with Wafer Level Packaging for Thermal Night Vision

  • High Resolution 640x512 12μm FPA Uncooled IR Detector with Wafer Level Packaging for Thermal Night Vision
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex612W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 Pixel Size 12μm
Package Wafer Level Packaging Material Vanadium Oxide
Size 17.3×17.3mm Weight ＜2.5g
NETD ＜40mK Wavelength 8~14μm
Highlight

FPA Uncooled IR Detector

,

Uncooled IR Detector 640x512
Leave a Message
Product Description
High Resolution FPA Uncooled IR Detector 640x512 12μm for Thermal Night Vision
Product Overview

The Apex612W uncooled thermal imaging detector represents our advanced Wafer Level Packaging (WLP) detector series, delivering exceptional thermal imaging performance for demanding applications.

Wafer Level Packaging (WLP) technology enables high vacuum packaging directly on the entire MEMS wafer, followed by scribing and cutting to produce individual infrared detectors. This cost-effective approach achieves fully optimized SWaP-C (Size, Weight, Power, and Cost) parameters while supporting mass production capabilities.

With high resolution 640x512 array and reduced 12μm pixel size, the Apex612W FPA infrared detector provides superior thermal imaging quality with 327,680 pixels. The larger array delivers more detailed images to meet requirements for higher resolution and wider field of view applications.

Main Features
  • Fully optimized SWaP-C applications
  • Suitable for various infrared products
  • Wide range of thermal imaging applications
  • Fast supply chain with high volume production
Product Specifications
Model Apex612W
Sensitive Material VOx
Package Wafer-Level
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD ﹤40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤150mW
Size(mm) 17.3×17.3
Weight(g) ＜2.5g
Operating Temperature -40℃ ~ +85℃
Industrial Applications
  • Thermography
  • Security & Monitoring
  • Thermal Night Vision
  • Smart Building
About Our Company

Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.

Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.

Our Value: To create advanced infrared technology that makes the world a better place.

Frequently Asked Questions
1. What is infrared thermal imaging?
In nature, all objects with temperatures above absolute zero (-273℃) radiate infrared rays. Infrared camera detectors measure the temperature difference between targets and their background, producing different infrared images known as thermal images.
2. How do infrared detectors work?
Infrared radiation emitted by targets enters the thermal detector's sensing range. The detector converts varying radiation intensities into corresponding electrical signals, which are then amplified and processed to form infrared images visible to the naked eye.
3. What are the advantages of cooled infrared detectors?
Cooled infrared focal plane detectors operate at low temperatures provided by detector dewar coolers (DDC). They offer higher sensitivity and can distinguish more subtle temperature differences than uncooled detectors, enabling detection, identification, and recognition of objects over distances exceeding ten kilometers. However, their complex structure results in higher costs compared to uncooled detectors.
