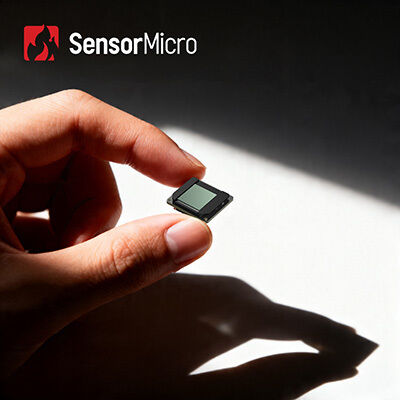

400x300 Resolution Vanadium Oxide Uncooled Infrared Detector with Wafer Level Packaging Microbolometer
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | Apex417W |
| Minimum Order Quantity | 1000 Pieces |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Type | Microbolometer | Material | Vanadium Oxide |
|---|---|---|---|
| Resolution | 400x300 | Pixel Pitch | 17μm |
| Size | 18x16x2.8mm | Weight | ＜2g |
| NETD | ＜40mK | Spectral Range | 8~14μm |
| Highlight | FPA Uncooled Infrared Detectors,Uncooled Infrared Detectors 400x300,400x300 Uncooled Vox Microbolometer |
||
Product Description
FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer
LWIR 400x300 / 17 μm VOx Uncooled Infrared Detector FPA Microbolometer
Product Overview
The Apex417W is a Wafer Level Packing (WLP) VOx uncooled focal plane array detector featuring 400x300 resolution with 17μm pixel size.
Wafer level packaging (WLP) represents the smallest, most cost-effective packaging solution. This process involves completing high vacuum packaging directly on the entire MEMS wafer, followed by scribing and cutting to produce individual infrared detectors. This streamlined manufacturing approach significantly reduces production time and costs.
The Apex417W uncooled LWIR infrared sensor finds applications across numerous fields including thermography, security monitoring, firefighting, autonomous driving, and personal vision systems.
Main Features
- Tiny Size: 18x16x2.8mm
- Light Weight: <1.5g
- Low Power Consumption
- Sharp Image Presentation
- Versatile Applications
Product Specifications
| Model | Apex417W |
|---|---|
| Sensitive Material | VOx |
| Package | Wafer-Level |
| Resolution | 400×300 |
| Pixel Size | 17μm |
| Spectral Response | 8μm~14μm |
| NETD | <40mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | <12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | <180mW |
| Size(mm) | 18×16 |
| Weight(g) | <2 |
| Operating Temperature | -40℃~ +85℃ |
Industrial Applications
The Apex417W uncooled microbolometer detector serves multiple industries including Thermography, Security & Monitoring, Outdoors, ADAS, Intelligent Hardware, Smart Building, Smart Home, and AIoT applications.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs.
Our mission is to empower people and systems to see beyond the surface—revealing patterns, problems, and possibilities that lie beneath. By converting invisible heat into visible data, we help industries make smarter decisions, protect critical assets, and navigate complexity with clarity.
Our commitment to self-reliance and customer-first principles has driven SensorMicro's global expansion. We serve diverse sectors including security, firefighting, industrial inspection, medical care, machine vision, environmental monitoring, and carbon neutrality initiatives—helping partners unlock the full potential of intelligent infrared sensing.
We are more than an infrared technology company. We are a community dedicated to building a sustainable, ethical, and human-centered future. Every innovation we create represents our commitment to protect, empower, and serve.
Frequently Asked Questions
What is the difference between uncooled and cooled IR detectors?
The infrared thermal imaging market features two primary sensor types: cooled and uncooled.
Uncooled IR detectors operate at ambient temperature and leverage semiconductor manufacturing processes, enabling high-volume production with compact sizes and lower costs. These detectors are ideal for portable, handheld, and mobile applications.
Cooled IR detectors require cryogenic cooling systems to maintain extremely low temperatures. While they offer superior sensitivity and support long-range missions with extended focal length optics, they are significantly larger, more expensive, and less reliable due to their complex cooling requirements.
