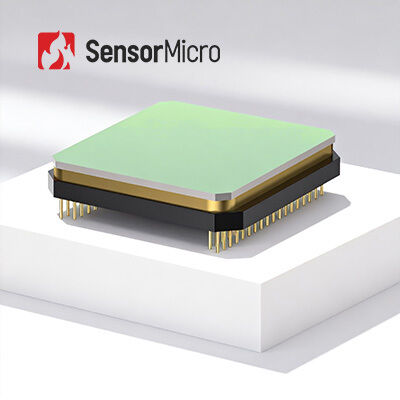

Light Weight Uncooled Infrared Detector with 1280×1024 Resolution and 8~14μm Spectral Range for Thermal Imaging
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | Apex1212C |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 1280×1024 / 12μm | Frame Rate | 50/60Hz |
|---|---|---|---|
| Size | 31×31×5.1mm(Without Pin) | Weight | ＜15g |
| NETD | ＜35mK | Spectral Range | 8~14μm |
| Highlight | Light Weight Uncooled Infrared Detectors,Uncooled Infrared Detectors 256x192 |
||
Product Description
Light Weight Uncooled Infrared Detectors 1280*1024 12μm for Infrared Imaging
Product Overview
Light Weight 1280*1024 / 12μm Uncooled LWIR Infrared Thermal Detector for Infrared Imaging
Apex1212C is a metal package VOx uncooled infrared FPA detector with 1280*1024 resolution, 12μm pixels pitch, high sensitivity and NETD<35mK. It can detect the infrared thermal radiation in the spectral range of 8 to 14μm.
The Apex1212C thermal camera sensor adopts metal packaging process and integrated TEC technology, which meets the requirements of high reliability, long life and stable operation. It provides clear thermal imaging in all kinds of harsh environments, such as total darkness, rainstorm, snow, sand storm and so on.
Apex1212C uncooled LWIR sensor is widely used in areas like Predictive Maintenance, Security & Monitoring, Outdoors, ADAS, Firefighting & Rescue and other industries.
Main Features
- Material: Vanadium Oxide
- Pixel Pitch: 12μm
- Resolution: 1280*1024
- Light Weight <15g
- Spectra Range: 8μm~14μm
- High sensitivity, NETD<36mK
Product Specifications
| Model | Apex1212C |
|---|---|
| Sensitive Material | VOx |
| Package | Ceramic |
| Resolution | 1280*1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ＜35mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤400mW |
| Size(mm) | 31*31*5.1(Without Pin) |
| Weight(g) | ﹤15 |
| Operating Temperature | -40℃ ~ +85℃ |
Industrial Applications
The Apex1212C thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS etc.
Our Advantages
Pre-Sales
- Requirement Analysis
- Scenario Assessment
- Product Selection
- Customized Solutions
Deployment
- Rapid Delivery
- System Integration & Testing
- Technical Training
- Application Guidance
After-Sales
- Remote Diagnostics
- Warranty Service
- Firmware Upgrades
- Technical Maintenance
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
