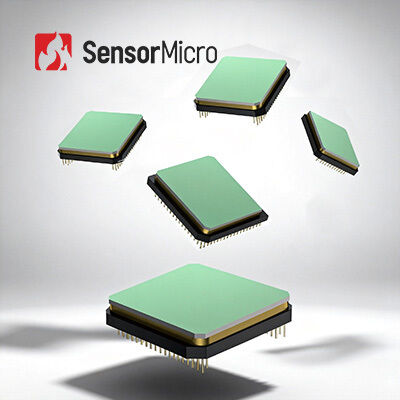

1280x1024 Resolution 12μm Pixel Pitch High Sensitivity Uncooled FPA Detector for Thermal Imaging

  • 1280x1024 Resolution 12μm Pixel Pitch High Sensitivity Uncooled FPA Detector for Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GST1212M
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 1280x1024 Pixel Pitch 12μm
Frame Rate 50/60Hz NETD ＜35mK
Spectral Range 8~14μm Size 31×31×5.1(Without Pin)
Highlight

1280x1024 Uncooled FPA Detector

,

12μm Uncooled FPA Detector

,

30mK Uncooled FPA Detector
Leave a Message
Product Description
1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera
Ultra Clear Imaging Thermal Detector
Apex1212C uncooled infrared detector is a VOx microbolometer featuring state-of-the-art 12µm pixel size and large array 1280x1024 resolution. Utilizing ceramic package technology, this uncooled infrared sensor delivers significantly improved sensitivity, smaller pixel spacing, and larger array size.
Based on metal package technics and TEC technology, the Apex1212C uncooled infrared microbolometer offers high sensitivity and stable performance, delivering clear imaging quality in harsh working environments including total darkness, thick fog, heavy rain, snow, and sand storms.
As a mainstream uncooled infrared focal plane detector with mature technology and high market share, this metal package thermal detector sensor provides stable performance and long operating life for various applications.
Main Features
  • NETD <35mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Product Specifications
Model Apex1212C
Sensitive Material VOx
Package Ceramic
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <400mW
Size(mm) 31×31×5.1(Without Pin)
Weight(g) <15
Operating Temperature -40℃ ~ +85℃
Industrial Applications
The Apex1212C uncooled FPA detector is widely used in thermography, security & monitoring, outdoors applications, law enforcement & rescue, ADAS, and many other areas.
Our Vision
To push the boundaries of sensing and transform the way people connect with the world around them.
Our Mission
To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.
Our Value
To create advanced infrared technology that makes the world a better place.
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
