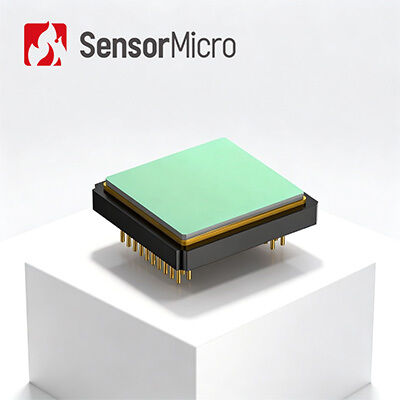

640x512 Resolution 12μm Pixel Size Ceramic Packaging Uncooled Infrared Detector for Thermal Imaging

640×512 / 12 μm Uncooled FPA Thermal Imaging Detector with Ceramic Package

Apex612C is a ceramic packaging VOx uncooled infrared detector that is light, tiny and has low thermal noise and fast response. Its resolution is 640×512 and pixel size at 12μm with its optimized microbolometer structure of best sensitivity for long wavelength between 8 and 14 µm.

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the Apex612C infrared detector could be applied to industries that have strict requirements on size, weight and power consumption.

• High thermal sensitivity, NETD<35mK
• Frame rate up to 50Hz
• Mini size as low as 18.5×18.5×3.78mm
• Light weight, less than 4.5g
• Low power consumption: 150mW

The Apex612C thermal imaging detector is widely used in many areas, such as ADAS, Security Monitoring, Handheld Device, Helmet-mounted Device, Machine Vision, Thermography, Power Maintenance, Metallurgy Petrochemical, Scientific Research etc.

As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.

Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

Night vision, Search & rescue, Non-destructive test, Epidemic prevention, Thermography, Security & monitoring, Firefighting, and more.

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
