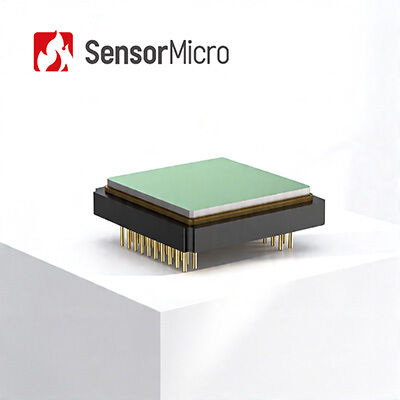

400x300 Resolution 50Hz Frame Rate Uncooled FPA Thermal Detector with Ceramic Package for Security Monitoring

  • 400x300 Resolution 50Hz Frame Rate Uncooled FPA Thermal Detector with Ceramic Package for Security Monitoring
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex412C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 400x300 / 12μm NETD ＜40mK
Spectral Range 8~14μm Size 18.5×18.5×3.8 (Without Pin Size)
Highlight

Uncooled FPA Thermal Detector Camera

,

50Hz Thermal Detector Camera

,

Security Monitoring Uncooled Infrared Detectors
Leave a Message
Product Description
Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring
400×300 / 12 μm Uncooled FPA Thermal Imaging Detector with Ceramic Package
The Apex412C uncooled infrared detector is a new infrared product developed by SensorMicro. It utilizes international mainstream vanadium oxide material, providing outstanding comprehensive performance. This vanadium oxide (VOx) microbolometer detector covers the long wavelength range from 8 to 14μm with a resolution of 400×300 and pixel size of 12μm.
Ceramic packaging represents the most popular packaging technology currently available on the market. This technology significantly reduces the detector's size, weight, and power consumption. By integrating the ceramic packaging infrared detector, infrared cameras can deliver clear and sharp images.
This new ceramic package infrared detector provides expanded options for customers across various industries including Industrial Automation, Intelligent Security, Unmanned Platforms, Robotics, Intelligent Hardware, Advanced Driver Assistance Systems, and Firefighting.
Main Features
  • High thermal sensitivity, NETD<35mK
  • Frame rate up to 50Hz
  • Miniature size as low as 18.5mm×18.5mm×3.8mm
  • Light weight, less than 4.5g
  • Low power consumption: 140mW
Product Specifications
Model Apex412C
Sensitive Material VOx
Package Ceramic
Resolution 400×300
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <140mW
Size(mm) 18.5×18.5×3.8
Weight(g) <4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications
The Apex412C thermal imaging detector is widely used in many areas, including ADAS, Security Monitoring, Handheld Devices, Machine Vision, Thermography, Power Maintenance, Metallurgy Petrochemical, and Scientific Research.
Company Profile
SensorMicro is a world-leading infrared detector manufacturer and service provider. We are committed to providing customers worldwide with high-performance uncooled and cooled thermal imaging detectors while sharing our professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images displaying temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
What can infrared imaging be used for?
• Night vision
• Search & rescue
• Non-destructive testing
• Thermography
• Security & monitoring
• Firefighting
What is a thermal imaging module?
A thermal imaging module typically consists of an infrared detector, infrared lens, and hardware electronics with embedded software and algorithms. It represents the minimum functional unit of a thermal imaging device.
