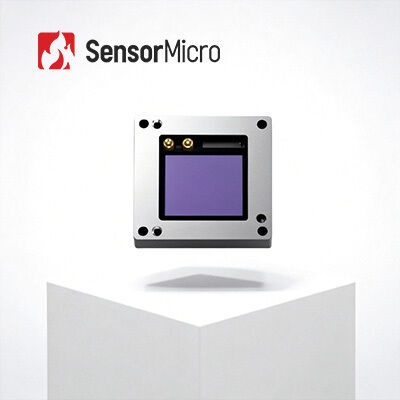

Vox Microbolometer Uncooled Infrared Detector with 640×512 Resolution 12μm Pixel Pitch and NETD<40mK for Thermal Imaging

  • Vox Microbolometer Uncooled Infrared Detector with 640×512 Resolution 12μm Pixel Pitch and NETD<40mK for Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex612W
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640×512/12μm Frame Rate 50/60Hz
Size 17.3×17.3mm Weight ＜2.5g
NETD ＜40mK Spectral Range 8~14μm
Highlight

Vox Microbolometer Uncooled Infrared Detectors

,

6.5g Uncooled Infrared Detectors
Leave a Message
Product Description
Vox Microbolometer Uncooled Infrared Detectors 640×512 12μm for Thermal Cameras
Product Overview

Apex612W is a WLP package VOx uncooled infrared FPA detector with 640×512 resolution, 12μm pixel pitch, high sensitivity and NETD<30mK. It can detect infrared thermal radiation in the spectral range of 8 to 14μm.

The Apex612W thermal camera sensor adopts WLP packaging process and integrated TEC technology, meeting requirements for high reliability, long life, and stable operation. It provides clear thermal imaging in harsh environments including total darkness, rainstorms, snow, and sand storms.

This uncooled LWIR sensor is widely used in predictive maintenance, security & monitoring, outdoors, ADAS, firefighting & rescue, and other industrial applications.

Main Features
  • Materials: VOx
  • Package: WLP
  • Pixel Pitch: 12μm
  • Resolution: 640×512
  • Spectral Range: 8μm~14μm
  • High Sensitivity, NETD<30mK
  • TEC Inside Ensures Stable Working
  • Thermal Response Time: <12ms (Customizable)
  • High Reliability & Strong Environmental Adaptability
Product Specifications
Model Apex612W
Sensitive Material VOx
Package Wafer-Level
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <150mW
Size(mm) 17.3×17.3
Weight(g) <2.5g
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex612W thermal imaging detector is widely used in thermography, security & monitoring, outdoors, law enforcement & rescue, ADAS, UAV payloads, and many other industrial applications.

Vox Microbolometer Uncooled Infrared Detector with 640×512 Resolution 12μm Pixel Pitch and NETD<40mK for Thermal Imaging 0
Your Trusted Partner in Infrared Sensing
  • Deep Technical Expertise: With many years of experience in research, development, and application of infrared sensor technology, we have strong capabilities across chip design, wafer fabrication, packaging and testing, and system integration.
  • Focused on Innovation: Committed to driving technological breakthroughs in thermal imaging, constantly pushing boundaries in NETD, SWaP, and operating temperature.
  • Diversified Product Portfolio: Offering comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for various industries.
  • Rigorous Reliability Validation: Supported by robust quality management system with multiple testing procedures to ensure long-term stability and reliability.
  • Professional Technical Support: Our engineering team works closely with customers to accelerate system integration, improve efficiency, and shorten time-to-market.
Frequently Asked Questions
How to choose proper infrared detector resolution?
It depends on actual needs and applications, with price being an important factor. For lower image quality requirements, choose detectors with resolutions like 120x90, 640×512, or 400x300. For very clear images in special applications like remote monitoring, choose high-resolution detectors of 1280x1024.
How to select right pseudo color for thermal imaging?

• Gray white is more suitable for targets with small temperature differences

• Red and blue is more suitable for scenes where problem points need to be identified

• Iron red is the standard color palette for the power industry

Note: The thermal temperature remains unchanged regardless of which palette you choose.

How to choose a suitable infrared thermal camera lens?

• Standard lens: Suitable for normal targets at appropriate distances

• Telephoto lens: Suitable for relatively small targets viewed from long distances

• Wide angle lens: Better for seeing more detail of objects at close distances

• Macro lens: For viewing very tiny targets at close distances, such as chip circuits
