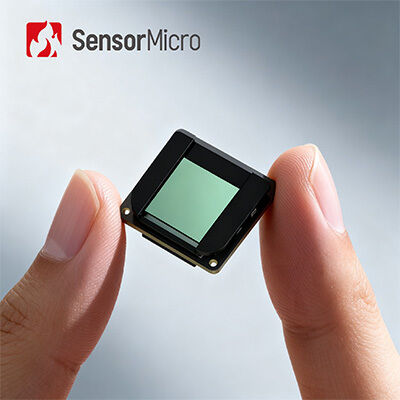

400x300 Resolution 17μm Pixel Pitch Vanadium Oxide Uncooled Infrared Detector FPA Microbolometer

  • 400x300 Resolution 17μm Pixel Pitch Vanadium Oxide Uncooled Infrared Detector FPA Microbolometer
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Type Microbolometer Resolution 400x300
Material Vanadium Oxide Weight ＜2g
Pixel Pitch 17μm NETD ＜40mK
Size 18x16x2.8mm Spectral Range 8~14μm
Highlight

VOx Uncooled Infrared Detectors

,

Uncooled Infrared Detectors FPA

,

FPA Microbolometer
Leave a Message
Product Description
LWIR 400x300 / 17μm VOx Uncooled Infrared Detector, FPA Microbolometer
Product Overview

Apex417W is a Wafer Level Packing (WLP) VOx uncooled focal plane array detector featuring 400x300 resolution with 17μm pixel size.

Wafer level packaging (WLP) represents the smallest, most cost-effective packaging solution, completing high vacuum packaging directly on the entire MEMS wafer before cutting into individual infrared detectors. This streamlined manufacturing process significantly reduces production time and costs.

The Apex417W uncooled LWIR infrared sensor is widely utilized across numerous applications including thermography, security monitoring, firefighting, autonomous driving, and personal vision systems.

Main Features
  • Tiny Size: 18x16x2.8mm
  • Light Weight: <1.5g
  • Low Power Consumption
  • Sharp Image Presentation
  • Versatile Application Compatibility
Product Specifications
Model Apex417W
Sensitive Material VOx
Package Wafer-Level
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD <40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <180mW
Size(mm) 18×16
Weight(g) <2
Operating Temperature -40℃~ +85℃
Industrial Applications
Thermography Security & Monitoring Outdoors ADAS Intelligent Hardware Smart Building Smart Home AIoT
Our Product Line

High sensitivity and excellent performance - World-leading technology in infrared industry

Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel sizes

Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors

Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects, converting invisible infrared radiation into visible thermal images that display temperature distribution across target surfaces. Different objects and even different parts of the same object exhibit varying radiation abilities and infrared reflection strengths.

What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive testing
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
What is a thermal imaging module?

A thermal imaging module typically consists of an infrared detector, infrared lens, and hardware electronics with embedded software and algorithms. It represents the minimum functional unit of a thermal imaging device.
