Home ProductsUncooled Infrared Detectors

640x512 Uncooled Vox Microbolometer Detector

I'm Online Chat Now

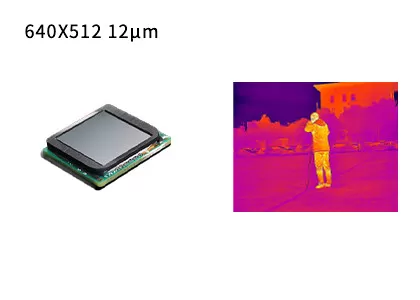

640x512 Uncooled Vox Microbolometer Detector

640x512 Uncooled Vox Microbolometer Detector
640x512 Uncooled Vox Microbolometer Detector

Large Image :  640x512 Uncooled Vox Microbolometer Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST612W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <40mK
Spectral Range: 8~14μm Size: 18x16x2.8mm
Weight: <1.5g Package: Wafer Level Packaging
High Light:

640x512 Uncooled Vox Microbolometer

,

Uncooled Vox Microbolometer Detector

,

1.5g Uncooled Vox Microbolometer

Brief Description



640x512 / 12μm VOx Uncooled Infrared Detectors, LWIR Thermal Sensor with Clear Thermal Imaging



Product Description



GST612W uncooled LWIR infrared detector is oriented for optimized SWaP-C (Size, Weight, Power, Cost). It has 640x512 resolution with pixel size at 12μm and captures long wavelength infrared energy from 8 to 14μm.



GST612W FPA uncooled vox microbolometer detector produces superior image up to 327,680 pixels without compromise in size, which makes it the mainstream product in the market with wide application in almost all popular applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.



Main Features:


- Resolution: 640x512
- Pixel Pitch: 12μm
- NETD: <40mK
- Frame Rate: 50/60Hz
- Clear Image Quality



Product Specifications



Model GST612W
Material VOx
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14 bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 18x16x2.8
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST612W thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



640x512 Uncooled Vox Microbolometer Detector 0



Global Sensor Technology Team



640x512 Uncooled Vox Microbolometer Detector 1





FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
