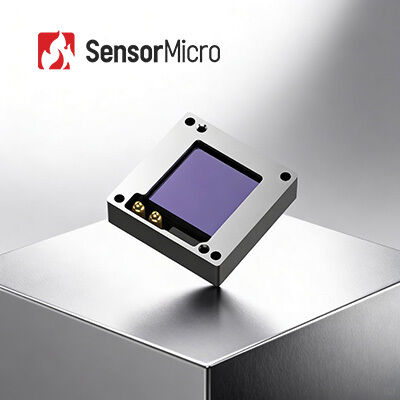

Tiny Size Uncooled Infrared Detector with 640×512 Resolution and 12μm Pixel Pitch for Thermal Imaging

  • Tiny Size Uncooled Infrared Detector with 640×512 Resolution and 12μm Pixel Pitch for Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GST212W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Type Microbolometer Material Vanadium Oxide
Resolution 640×512 Pixel Pitch 12μm
NETD ＜40mK Spectral Range 8~14μm
Size 17.3×17.3mm Weight ＜2.5g
Highlight

Tiny Uncooled Infrared Detectors

,

LWIR Thermal Imaging Sensor Detector

,

Uncooled Infrared Detectors LWIR
Leave a Message
Product Description
Tiny Size Uncooled Infrared Detector LWIR 640×512 / 12μm Thermal Imaging Detector
Product Description

Apex612W is a Wafer Level Packing (WLP) vanadium oxide (VOx) microbolometer detector. This VOx uncooled focal plane detector covers long wavelength from 8 to 14μm with a resolution of 640×512 and pixel size of 12μm.

Thanks to wafer level packaging technology, the WLP infrared detector has simpler manufacturing process and is more suitable for high volume, low cost production, making it easier to integrate into various thermal imaging applications. Due to its miniature size, lightweight design, and low power consumption, the Apex612W thermal infrared detector is ideal for consumer electronics and emerging markets.

We specialize in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We provide customers with various infrared thermal imaging solutions that shorten secondary development time and significantly reduce costs.

Main Features
  • Uncooled VOx Microbolometer
  • Focal Plane Array Detector
  • 640×512 Resolution
  • 12μm Pixel Pitch
  • Wafer Level Packaging
Product Specifications
Model Apex612W
Sensitive Material VOx
Package Wafer-Level
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD ﹤40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤150mW
Size(mm) 17.3×17.3
Weight(g) ＜2.5g
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex612W uncooled microbolometer detector is widely used in Thermography, Security & Monitoring, Outdoors, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT and other applications.

Our Advantages
  • High sensitivity and excellent performance with world-leading technology in infrared industry
  • Various infrared detectors available including both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery with three production lines and annual production capability up to millions of detectors
FAQs
How does uncooled focal plane array microbolometer work?

Using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, increasing the temperature of the sensitive material. This causes corresponding changes in physical parameters of the sensitive material, which are converted into electrical signals or visible light signals through designed conversion mechanisms to enable object detection.

What's the advantage of uncooled VOx microbolometer?

Uncooled infrared focal plane detectors do not require an Integrated Dewar Cooler Assembly (IDCA) device and can operate at room temperature. They offer advantages including fast start-up, low power consumption, small size, light weight, long lifespan, and low cost. While sensitivity may not match cooled infrared detectors, years of development have made uncooled detectors more cost-effective with broader application prospects.
