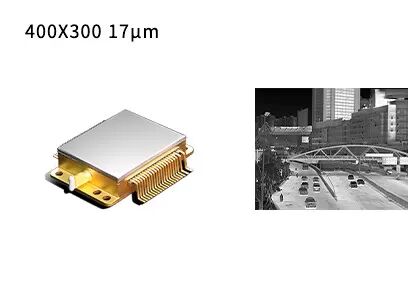

High Sensitivity VOx Thermal Sensor 400x300 / 17μm for Harsh Environments

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GST417M
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Sensor FPA Vanadium Oxide Size 30x19.8x7.32mm
Type Uncooled Microbolometer Resolution 400x300 / 17μm
NETD <30mK Spectral Range 8~14μm
High Light

High Sensitivity VOx Thermal Sensor


400x300 VOx Thermal Sensor


Harsh Environments Uncooled Infrared Detectors

Leave a Message
Product Description
GST417M Uncooled Infrared Detector


High Sensitivity 400x300 / 17μm Thermal VOx Sensor, Thermal Imaging Detector for Harsh Environments


Product Description


GST417M is one of the metal packing uncooled focal plane array detectors developed by Global Sensor Technology (GST). With standard 400x300 QVGA format at 17μm, the GST417M uncooled microbolometer sensor will exceed your most demanding requirements.


Based on metal package technics and TEC technology, GST417M thermal imaging detector sensor has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.


As a leading infrared detector and thermal imaging module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for WLP uncooled VOx microbolometer sensors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.


Main Features


- NETD<30mk, High Sensitivity
- Mature Technology
- Stable Performance
- Long Operating Life
- Clear Image Quality & Details
- Strong Environmental Adaptability


Product Specifications


Model GST417M
Material VOx
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Power Consumption <200mW
Dimension (mm) 30x19.8x7.32
Weight <18g
Operation Temperature -40°C ~ +85°C


Industrial Applications


The GST417M thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.


High Sensitivity VOx Thermal Sensor 400x300 / 17μm for Harsh Environments 0



Our Advantages


High Sensitivity VOx Thermal Sensor 400x300 / 17μm for Harsh Environments 1




1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.


2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
