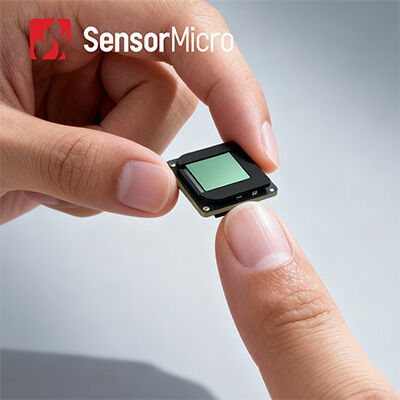

400x300 Resolution 17μm Pixel Size Vanadium Oxide Uncooled Infrared Detector for Surveillance

  • 400x300 Resolution 17μm Pixel Size Vanadium Oxide Uncooled Infrared Detector for Surveillance
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417W
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Sensor FPA Vanadium Oxide Size 18×16mm
Type Uncooled Microbolometer Resolution 400x300 / 17μm
NETD ＜40mK Spectral Range 8~14μm
Highlight

Surveillance Camera Uncooled Infrared Detector

,

400x300 Uncooled Infrared Detector

,

FPA Uncooled Microbolometer Detector
Leave a Message
Product Description
400x300 / 17μm Uncooled Infrared Detector For Surveillance Camera
Stable Performance 400x300 / 17 μm Uncooled Infrared Detector for Surveillance Camera
Product Overview

Apex417W is one of the wafer-level packing uncooled focal plane array detectors developed by SensorMicro. With standard 400x300 QVGA format at 17μm, the Apex417W uncooled microbolometer sensor will exceed your most demanding requirements.

Based on WLP package technics and TEC technology, Apex417W thermal imaging detector sensor has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.

We are a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.

Main Features
  • NETD<30mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Product Specifications
Model Apex417W
Sensitive Material VOx
Package Wafer-Level
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD ＜40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤180mW
Size(mm) 18×16
Weight(g) ﹤2
Operating Temperature -40℃~ +85℃
Industrial Applications

The Apex417W thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS etc.

Customized Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.

2. What are the characteristics of cooled & uncooled infrared focal plane detector?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
