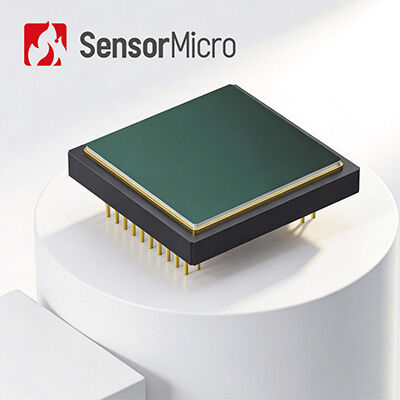

400x300 Resolution 17μm Pixel Size Uncooled FPA Thermal Imaging Detector with Vanadium Oxide Microbolometer

  • 400x300 Resolution 17μm Pixel Size Uncooled FPA Thermal Imaging Detector with Vanadium Oxide Microbolometer
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 400x300 / 17μm NETD ＜30mK
Spectral Range 8~14μm Size 18.5×18.5×3.8mm
Highlight

UAV Payloads Thermal Imaging Detector

,

Uncooled Thermal Imaging Detector

,

High Sensitivity Uncooled Infrared Detectors
Leave a Message
Product Description
Uncooled FPA Thermal Imaging Detector 400x300 / 17μm
Apex417C Uncooled Infrared Detector

400x300 / 17μm Uncooled FPA Thermal Imaging Detector

Product Description

Apex417C uncooled infrared focal plane detector is developed by SensorMicro. With standard 400x300 QVGA format at 17μm, the Apex417C vanadium oxide microbolometer will exceed your most demanding requirements.

Apex417C ceramic package infrared detector integrates the mainstream vanadium oxide (VOx) microbolometer on the market, the built-in TEC technology readout circuit that keeps stable performance and vacuum package that avoid heat exchange.

Apex417C VOx thermal sensor has characteristics of high sensitivity, stable performance and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.

Main Features
  • NETD<30mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Product Specifications
Model Apex417C
Sensitive Material VOx
Package Ceramic
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD ﹤30mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤180mW
Size(mm) 18.5×18.5×3.8
Weight(g) ﹤4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex417C thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive test
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
