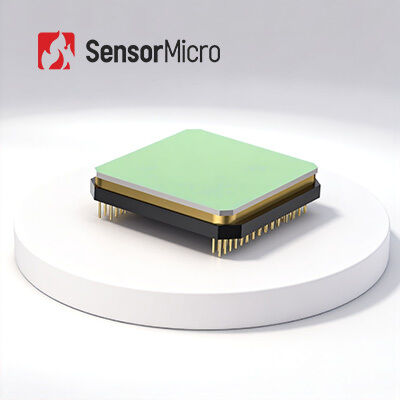

1280×1024 Resolution 12μm Pixel Pitch Vox Microbolometer Detector with NETD <35mK for High Sensitivity Thermal Imaging

  • 1280×1024 Resolution 12μm Pixel Pitch Vox Microbolometer Detector with NETD <35mK for High Sensitivity Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex1212C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 1280×1024 / 12μm Frame Rate 50/60Hz
Size 31×31×5.1(Without Pin)mm Weight ＜15g
NETD ＜35mK Spectral Range 8~14μm
Highlight

Vox Microbolometer Detector Sensor

,

256x192 Vox Microbolometer Detector
Leave a Message
Product Description
1280×1024 12μm Vox Microbolometer Detector Sensor
Product Overview

Small Size Uncooled LWIR 1280×1024 / 12μm Vox Microbolometer Infrared Detector Sensor

Apex1212C is a ceramic package VOx uncooled infrared FPA detector with 1280×1024 resolution, 12μm pixels pitch, high sensitivity and NETD<35mK. It can detect the infrared thermal radiation in the spectral range of 8 to 14μm.

The Apex1212C thermal camera sensor adopts metal packaging process and integrated TEC technology, which meets the requirements of high reliability, long life and stable operation. It provides clear thermal imaging in all kinds of harsh environments, such as total darkness, rainstorm, snow, sand storm and so on.

Apex1212C uncooled LWIR sensor is widely used in areas like Predictive Maintenance, Security & Monitoring, Outdoors, ADAS, Firefighting & Rescue and other industries.

Main Features
  • Materials: VOx
  • Package: Ceramic
  • Pixel Pitch: 12μm
  • Resolution: 1280×1024
  • Spectra Range: 8μm~14μm
  • High sensitivity, NETD<35mK
  • TEC Inside Ensures Stable Working
  • Thermal Response Time: <12ms (Customizable)
  • High Reliability & Strong Environmental Adaptability
Product Specifications
Model Apex1212C
Sensitive Material VOx
Package Ceramic
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD ＜35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤400mW
Size(mm) 31×31×5.1(Without Pin)
Weight(g) ﹤15
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex1212C thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS etc.

Our Advantages
1280×1024 Resolution 12μm Pixel Pitch Vox Microbolometer Detector with NETD <35mK for High Sensitivity Thermal Imaging 0
Frequently Asked Questions
  • What is infrared detector / thermal imaging sensor?
    Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.
  • What is WLP?
    WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.
  • What's the advantage of WLP?
    WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. SensorMicro, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
