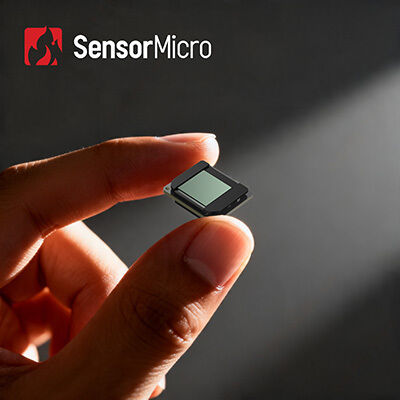

Uncooled Infrared Detector with 400x300 Resolution and 17μm Pixel Pitch Using Vanadium Oxide Material

  • Uncooled Infrared Detector with 400x300 Resolution and 17μm Pixel Pitch Using Vanadium Oxide Material
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 400x300 Pixel Pitch 17μm
Type Microbolometer Spectral Range 8~14μm
Material Vanadium Oxide NETD ＜40mK
Size 18x16x2.8mm Weight ＜2g
Highlight

Uncooled Long Wave Infrared Sensors

,

Long Wave Infrared Sensors 400x300
Leave a Message
Product Description
Uncooled Long Wave Infrared Sensors 400x300 17μm Vanadium Oxide Material
Product Overview

The Apex417W is a Wafer Level Packing (WLP) uncooled microbolometer detector featuring 400x300 resolution with 17μm pixel size, designed to capture long-wave infrared (LWIR) spectrum ranging from 8 to 14μm.

Key Features
  • Detector Material: Vanadium Oxide (VOx)
  • Detector Resolution: 400x300
  • Pixel Size: 17μm
  • Clear Image Quality
  • Wide Application Range
Technical Specifications
Model Apex417W
Sensitive Material VOx
Package Wafer-Level
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD ＜40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤180mW
Size(mm) 18×16
Weight(g) ﹤2
Operating Temperature -40℃~ +85℃
Industrial Applications

The Apex417W uncooled microbolometer detector is widely used in Thermography, Security & Monitoring, Outdoors, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT, and many other applications.

Manufacturing Excellence

Utilizing cost-effective WLP technology, we have achieved fully optimized SWaP-C application and mass production of WLP infrared detectors. The entire manufacturing, packaging, and delivery process is streamlined for shorter cycles and lower costs.

About SensorMicro

SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors. With over 10 years of industry experience, we offer advanced infrared detectors, camera cores, and modules with versatile formats and wavebands designed for clarity, sensitivity, and efficiency.

Our products integrate seamlessly into diverse systems, empowering next-generation imaging and sensing applications across industries including thermography, security & surveillance, personal vision, automotive, and consumer infrared products.

Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries including:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
