400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography

I'm Online Chat Now

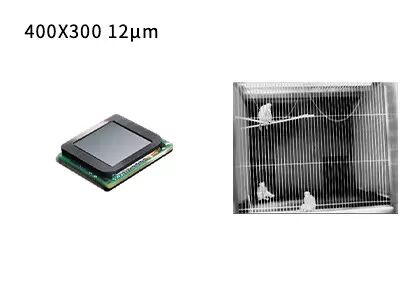

400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography

400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography
400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography

Large Image :  400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST412W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Size: 18x16x2.8mm Weight: <1.5g
Resolution: 400x300 Pixel Pitch: 12μm
Type: Microbolometer Material: Vanadium Oxide
NETD: <40mK Spectral Range: 8~14μm
High Light:

400x300 Thermal Infrared Detectors

,

Thermal Infrared Detectors Uncooled

,

Uncooled VOx Microbolometer For Thermography

About GST212W Uncooled Infrared Detector



Uncooled VOx Microbolometer 400x300 / 12μm Thermal Infrared Detector for Thermography



Product Description



The GST412W uncooled LWIR detector is a VOx focal plane array (FPA) microbolometer with its resolution 400x300 and pixel size at 12μm.



Thanks to the WLP technology, the GST412W thermal infrared detector produces clear infrared thermal image up to 120,000 pixels without compromise in size, which enables wide application in almost all popular applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of infrared thermal detectors and thermal camera cores. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features



- Type: microbolometer

- Material: vanadium oxide

- NETD: <40mK

- Thermal Response Time: <12ms

- Wavelength: 8~14μm (Long Wave Infrared)



Product Specifications



Model GST412W
Material VOx
Resolution 400x300
Pixel Pitch 12μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 18x16x2.8
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST412W uncooled microbolometer detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, UAVs Payload, Epedemic Prevention, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography 0



Exhibitions



400x300 12μm Thermal Infrared Detectors Uncooled VOx Microbolometer for Thermography 1



FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
