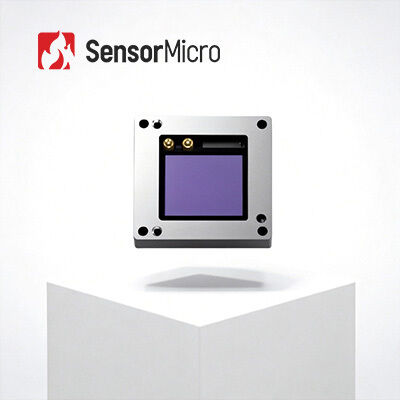

Light Weight LWIR Thermal Imaging Sensor with 640x512 Resolution and 12μm Pixel Size Focal Plane Array Microbolometer

  • Light Weight LWIR Thermal Imaging Sensor with 640x512 Resolution and 12μm Pixel Size Focal Plane Array Microbolometer
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GST612W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Package Wafer Level Packaging Size 17.3×17.3mm
Weight ＜2.5g Resolution 640x512 / 12μm
NETD ＜40mK Wavelength 8~14μm
Highlight

LWIR Thermal Imaging Sensor

,

Thermal Imaging Sensor 640x512

,

Lightweight microbolometer sensor
Leave a Message
Product Description
Light Weight LWIR Thermal Imaging Sensor 640x512 12μm Focal Plane Array Microbolometer
Product Overview

The Apex612W uncooled thermal imaging detector is engineered for optimized SWaP-C (Size, Weight, Power, Cost) performance. Featuring a 640x512 resolution with 12μm pixel size, this LWIR infrared detector captures the long-wave infrared spectrum ranging from 8 to 14μm.

With high resolution and reduced pixel size, the Apex612W FPA infrared detector delivers superior thermal imaging quality with up to 327,680 pixels. The larger array provides more detailed images to meet the requirements of higher resolution and wider field of view applications.

Main Features
  • Type: VOx microbolometer
  • Size: 17.3×17.3mm
  • Weight: <2.5g
  • Affordable price
  • Clear Image Quality
Product Specifications
Model Apex612W
Sensitive Material VOx
Package Wafer-Level
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <150mW
Size(mm) 17.3×17.3
Weight(g) <2.5g
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex612W uncooled infrared detector is widely used in Thermography, Security & Monitoring, Thermal Night Vision, Law Enforcement & Rescue, ADAS, and various other industrial applications.

Our Advantages
Not only IR Detectors, But also ONE-STOP Infrared Solutions

High sensitivity and excellent performance with world-leading technology in infrared industry.

Various infrared detectors available

Both uncooled and cooled IR detectors in different formats and pixel sizes.

Volume production to ensure fast delivery

Three production lines with annual production capability up to millions of detectors.

Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.

How does Infrared Thermal Imaging Work?

Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

With over 10 years of experience in infrared thermal imaging applications, we offer mature solutions and professional after-sales service. For any questions or problems, please contact us at any time - we will respond promptly to assist you.
