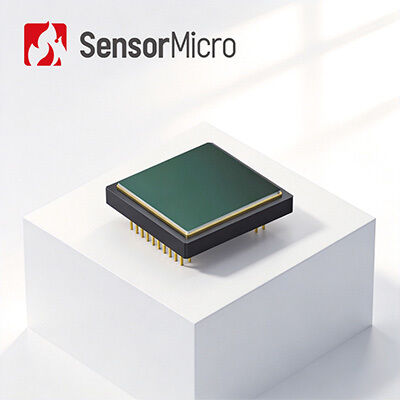

Long Wave Thermal Infrared Detector with 400×300 Resolution Ceramic Package Uncooled VOx Microbolometer for High Sensitivity Imaging

  • Long Wave Thermal Infrared Detector with 400×300 Resolution Ceramic Package Uncooled VOx Microbolometer for High Sensitivity Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Type Ceramic Package Material Vanadium Oxide
Resolution 400×300 / 17μm NETD ＜30mK
Spectral Range 8~14μm Size 18.5×18.5×3.8mm
Highlight

VOx Thermal Infrared Detector

,

Thermal Infrared Detector 800x600
Leave a Message
Product Description
Long Wave Thermal Infrared Detector Uncooled VOx 400×300 / 17μm
Product Overview

Apex417C is a ceramic packaging uncooled high-resolution thermal sensor featuring unique 400×300 resolution that sets new standards for the infrared industry. With 46% enhanced effective pixels compared to other infrared detector sensors of the same format, it delivers superior image details for enhanced target detection, recognition, and precise temperature measurement.

The featured FPA format provides perfect pixel-to-pixel matching between infrared detector output and OLED display for optimal image presentation. VOx microbolometer technology offers mature, reliable performance with low cost, small size, low power consumption, and long operational life.

Key Features
  • NETD <30mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Technical Specifications
Model Apex417C
Sensitive Material VOx
Package Ceramic
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD <30mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <180mW
Size(mm) 18.5×18.5×3.8
Weight(g) <4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex417C thermal imaging detector is widely used in Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, and various other industrial applications.

Customized Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is infrared thermal imaging?

Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects. By detecting radiation differences between objects and their background environment, as well as variations within objects themselves, infrared thermal images display radiation fluctuations that reveal scene characteristics.

What are the advantages of infrared thermal imaging?
  • See through total darkness
  • Identification under camouflage
  • Long range detection
  • Heat distribution detection
  • Non-contact temperature measurement
  • Occupation awareness
What are the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are the two fundamental functions of infrared thermal imaging technology. Products developed using these technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment, and other traditional fields.
