Long Wave Thermal Infrared Detector Uncooled VOx 800x600 / 17μm

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GST817M
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Metal Package Material Vanadium Oxide
Resolution 800x600 / 17μm NETD <30mK
Spectral Range 8~14μm Size 35x25x7.4mm
High Light

VOx Thermal Infrared Detector


Thermal Infrared Detector 800x600

Leave a Message
Product Description
 Uncooled Infrared Detector

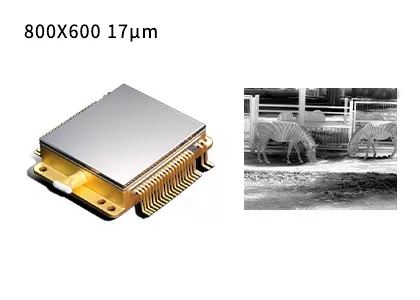

Long Wave Thermal Infrared Detector Uncooled VOx 800x600 / 17μm


Product Description


GST817M is one of the metal packing uncooled high resolution thermal sensors developed by Global Sensor Technology (GST). The unique 800x600 resolution sets up a new standard for the infrared industry. Its effective pixels is 46% enhanced compared to the other VGA infrared detector sensors, which presents more image details to support the target detection and recognition as well as precise temperature measurement. The featured FPA format also offers a perfect pixel-to-pixel match between the infrared detector output and the OLED display for an optimal image presentation.


Now microbolometer detector is a mainstream uncooled infrared focal plane detector in the market and has the most mature technology and the highest market share. Also due to its characteristics of low cost, small size, low power consumption and long operation life, VOx microbolometer has been a perfect choice in various infrared fields.


Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.


Main Features:


- NETD<30mk, High Sensitivity

- Mature Technology

- Stable Performance

- Long Operating Life

- Clear Image Quality & Details

- Strong Environmental Adaptability


Product Specifications


Model GST817M
Material VOx
Resolution 800x600
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Power Consumption <220mW
Dimension (mm) 35x25x7.4
Weight <25g
Operation Temperature -40°C ~ +85°C


Industrial Applications


The GST817M thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.


Long Wave Thermal Infrared Detector Uncooled VOx 800x600 / 17μm 0




Long Wave Thermal Infrared Detector Uncooled VOx 800x600 / 17μm 1




1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.


2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness


3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
