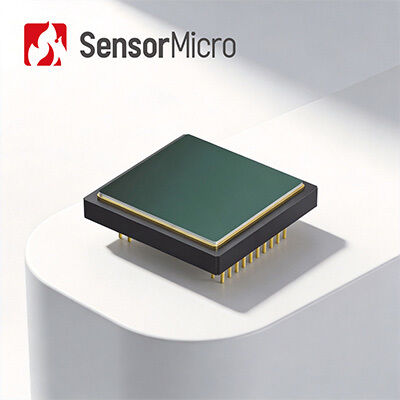

400×300 Resolution 17μm Pixel Size Ceramic Package Uncooled Infrared Detector for Thermal Imaging

  • 400×300 Resolution 17μm Pixel Size Ceramic Package Uncooled Infrared Detector for Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex417C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 400×300 / 17μm NETD ＜30mK
Size 18.5×18.5×3.8mm Weight ＜4.5g
Spectral Range 8~14μm Frame Rate 50/60Hz
Highlight

800x600 Uncooled Infrared Detectors

,

25g Uncooled Infrared Detectors
Leave a Message
Product Description
400×300 17μm Uncooled Infrared Detector for Thermal Imaging & Thermography
Product Overview

The Apex417C ceramic package uncooled high-resolution thermal sensor delivers stable performance with its unique 400×300 resolution, setting a new standard for the infrared industry. With 46% more effective pixels compared to other VGA infrared detector sensors, it provides enhanced image details for improved target detection, recognition, and precise temperature measurement.

Key Features
  • NETD <30mk, High Sensitivity
  • Mature Technology
  • Stable Performance
  • Long Operating Life
  • Clear Image Quality & Details
  • Strong Environmental Adaptability
Technical Specifications
Model Apex417C
Sensitive Material VOx
Package Ceramic
Resolution 400×300
Pixel Size 17μm
Spectral Response 8μm~14μm
NETD <30mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <180mW
Size(mm) 18.5×18.5×3.8
Weight(g) <4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications

The Apex417C thermal imaging detector is widely used in thermography, security & monitoring, outdoors, law enforcement & rescue, ADAS, and various other industrial applications.

Our Advantages
  • Wide Product Range: Infrared detectors, camera cores, and modules to meet various integration requirements
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options for diverse applications
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability
  • Easy Integration: Multiple interface options for straightforward integration and rapid development
Frequently Asked Questions
How to choose proper infrared detector resolution?
Selection depends on your actual application needs and budget considerations. For basic image quality requirements, lower resolution detectors (120x90, 256x192, 400x300) are suitable. For applications requiring very clear images, such as remote monitoring, higher resolution detectors (1280x1024) are recommended.
How to select right pseudo color for thermal imaging?
  • Gray white is more suitable for targets with small temperature differences
  • Red and blue is ideal for scenes where problem points need to be identified
  • Iron red is the standard color palette for the power industry
Note: The thermal temperature measurement remains unchanged regardless of color palette selection.
How to choose a suitable infrared thermal camera lens?
  • Standard lens: Suitable for normal targets at appropriate distances
  • Telephoto lens: Ideal for relatively small targets viewed from long distances
  • Wide angle lens: Better for viewing more detail of objects at close distances
  • Macro lens: Designed for very tiny targets at close distances, such as chip circuits
