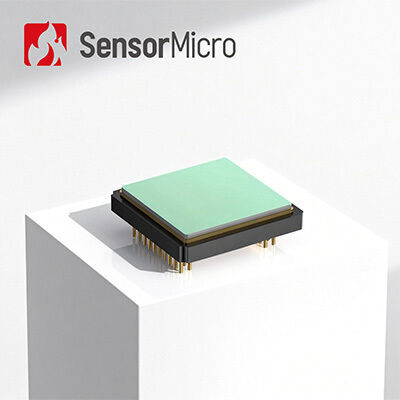

640x512 Resolution 12μm Pixel Size 50Hz Frame Rate Uncooled Infrared Detector for Security Monitoring

  • 640x512 Resolution 12μm Pixel Size 50Hz Frame Rate Uncooled Infrared Detector for Security Monitoring
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number Apex612C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 / 12μm NETD ＜35mK
Spectral Range 8~14μm Size 18.5×18.5×3.78mm
Frame Rate 50/60Hz Thermal Response Time ＜12ms
Highlight

30mK Uncooled Infrared Detectors

,

Uncooled Infrared Detectors 50Hz
Leave a Message
Product Description
30mK Uncooled Infrared Detectors 50Hz 60Hz for Security / Monitoring
High Quality LWIR 640x512 / 12 μm Uncooled Infrared Detectors
Apex612C is one of the metal packing uncooled infrared detectors. With standard 640x512 VGA format at 12μm, the Apex612C IR FPA detector will exceed your most demanding requirements.
Based on ceramic package technics and TEC technology, Apex612C uncooled microbolometer detector has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.
Product Specifications
Model Apex612C
Sensitive Material VOx
Package Ceramic
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD ﹤35mK
Output Signal Built-in 14 bits ADC
Thermal Response Time ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤150mW
Size(mm) 18.5×18.5×3.78
Weight(g) ﹤4.5
Operating Temperature -40℃ ~ +85℃
Industrial Applications
The Apex612C thermal imaging detector is widely used in many areas, such as Thermography, Security / Monitoring, Outdoors, Law Enforcement / Rescue, ADAS etc.
Product Features
  • Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
  • Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
  • Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation. For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
