VOx Uncooled Infrared Detector 400x300 For Thermographic Camera

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GST412M
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 400x300 Pixel Size 12μm
NETD <30mK Spectral Range 8~14μm
Size 30x19.8x7.32mm Frame Rate 50/60Hz
High Light

VOx Uncooled Infrared Detector

,

Thermographic Camera Uncooled Infrared Detector

,

Vanadium Oxide Microbolometer 400x300

Leave a Message
Product Description
Brief Description



400x300 / 12μm Uncooled Infrared Detector for Thermal Imaging Camera, Thermographic Camera



Product Description



GST412M is one of the metal packing uncooled infrared detectors developed by Global Sensor Technology (GST). With standard 400x300 QVGA format at 12μm, the GST412M vanadium oxide microbolometer will exceed your most demanding requirements.



Based on metal package technics and TEC technology, GST412M VOx thermal sensor has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.



Global Sensor Technology is a leading cooled & uncooled sensor and thermal camera module manufacturer which could provide customers with various steady thermal imaging solutions. Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for our thermal sensors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features


- NETD<30mk, High Sensitivity
- Mature Technology
- Stable Performance
- Long Operating Life
- Clear Image Quality & Details
- Strong Environmental Adaptability



Product Specifications



Model GST412M
Material VOx
Resolution 400x300
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Power Consumption <200mW
Dimension (mm) 30x19.8x7.32
Weight <18g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST412M thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.

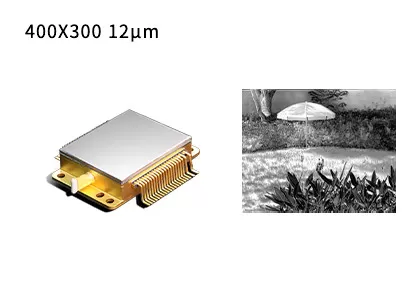

VOx Uncooled Infrared Detector 400x300 For Thermographic Camera 0





Company Profile



VOx Uncooled Infrared Detector 400x300 For Thermographic Camera 1



FAQs



1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
