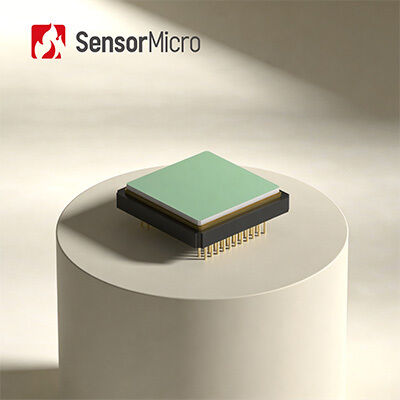

400x300 Resolution 12μm Pixel Size Ceramic Package VOx Microbolometer Uncooled Infrared Detector for Thermal Imaging

400x300 / 12μm Uncooled Infrared Detector for Thermal Imaging Camera, Thermographic Camera

Apex412C is one of the ceramic packing uncooled infrared detectors developed by SensorMicro. With standard 400x300 QVGA format at 12μm, the Apex412C vanadium oxide microbolometer will exceed your most demanding requirements.

Based on ceramic package technics and TEC technology, Apex412C VOx thermal sensor has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.

SensorMicro is a leading cooled & uncooled sensor and thermal camera module manufacturer which could provide customers with various steady thermal imaging solutions. Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It's easier for our thermal sensors to be integrated into more terminal products and greatly reduces the cost for customers.

• NETD<35mk, High Sensitivity
• Mature Technology
• Stable Performance
• Long Operating Life
• Clear Image Quality & Details
• Strong Environmental Adaptability

The Apex412C thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS etc.

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
