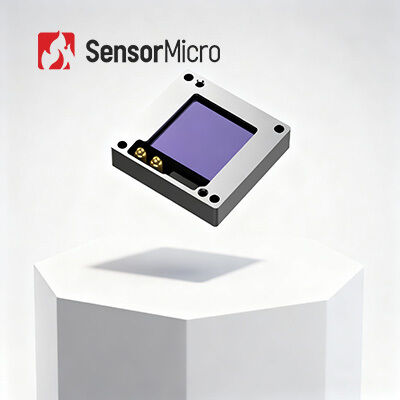

640x512 Resolution 12μm Pixel Size Uncooled Infrared Detector with Wafer Level Packaging for LWIR Thermal Imaging

  • 640x512 Resolution 12μm Pixel Size Uncooled Infrared Detector with Wafer Level Packaging for LWIR Thermal Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GST612W
Minimum Order Quantity 1000 Pieces
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 / 12μm NETD ＜40mK
Spectral Range 8~14μm Size 17.3×17.3mm
Weight ＜2.5g Package Wafer Level Packaging
Highlight

640x512 Uncooled Infrared Detectors

,

40mK Uncooled Infrared Detectors

,

LWIR Infrared Imaging Sensor
Leave a Message
Product Description
640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor
Product Overview

640x512 / 12 μm VOx Uncooled Infrared Detectors, LWIR Thermal Sensor with Clear Thermal Imaging

The Apex612W uncooled LWIR infrared detector is optimized for SWaP-C (Size, Weight, Power, Cost) requirements. With 640x512 resolution and 12μm pixel size, it captures long wavelength infrared energy from 8 to 14μm.

This VOx microbolometer detector produces superior images with up to 327,680 pixels without compromising on size, making it a mainstream product suitable for various applications including thermography, security monitoring, firefighting, autonomous driving, and personal vision systems.

We supply cooled and uncooled infrared detectors and thermal imaging modules for secondary development requirements in infrared thermal camera systems.

Main Features
  • Resolution: 640x512
  • Pixel Pitch: 12μm
  • NETD: <40mK
  • Frame Rate: 50/60Hz
  • Clear Image Quality
Product Specifications
Model Apex612W
Sensitive Material VOx
Package Wafer-Level
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm~14μm
NETD <40mK
Output Signal Built-in 14 bits ADC
Thermal Response Time <12ms
Max. Frame Rate 50Hz
Power Consumption <150mW
Size(mm) 17.3×17.3
Weight(g) <2.5g
Operating Temperature -40℃ ~ +85℃
Industrial Applications
  • Thermography
  • Security & Monitoring
  • Outdoors
  • Law Enforcement & Rescue
  • ADAS (Advanced Driver Assistance Systems)
Frequently Asked Questions
What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detectors and thermal imaging sensors are optical-electrical devices that react to infrared radiation and thermal energy, converting it into electrical signals and outputting visible thermal images.

What is WLP?

WLP refers to wafer level packaging. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to create individual infrared sensors. Together with metal packaging and ceramic packaging, these are the three main package formats for uncooled infrared detectors.

What's the advantage of WLP?

WLP IR detectors are specifically designed to meet miniaturization and low-cost requirements for infrared technology applications in consumer electronics markets. We offer various WLP infrared module solutions to support new applications in emerging markets.
