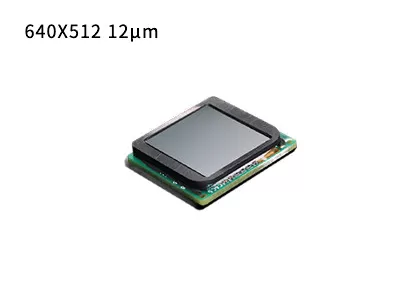

640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor

I'm Online Chat Now

640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor

640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor
640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor

Large Image :  640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST612W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <40mK
Spectral Range: 8~14μm Size: 18x16x2.8mm
Weight: <1.5g Package: Wafer Level Packaging
High Light:

640x512 Uncooled Infrared Detectors

,

40mK Uncooled Infrared Detectors

,

LWIR Infrared Imaging Sensor

Brief Description



640x512 / 12μm VOx Uncooled Infrared Detectors, LWIR Thermal Sensor with Clear Thermal Imaging



Product Description



GST612W uncooled LWIR infrared detector is oriented for optimized SWaP-C (Size, Weight, Power, Cost). It has 640x512 resolution with pixel size at 12μm and captures long wavelength infrared energy from 8 to 14μm.



GST612W FPA uncooled vox microbolometer detector produces superior image up to 327,680 pixels without compromise in size, which makes it the mainstream product in the market with wide application in almost all popular applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.



Global Sensor Technology is a supplier of cooled uncooled infrared detectors and infrared thermal imaging modules. These infrared FPA detectors and thermal camera cores are partial components of infrared thermal cameras, which are specially used for the secondary development requirements of the customers.



Main Features:


- Resolution: 640x512
- Pixel Pitch: 12μm
- NETD: <40mK
- Frame Rate: 50/60Hz
- Clear Image Quality



Product Specifications



Model GST612W
Material VOx
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14 bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 18x16x2.8
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST612W thermal imaging detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



640x512 12μm Uncooled Infrared Detector LWIR Infrared Imaging Sensor 0





FAQs



1. What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.



2. What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.



3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
