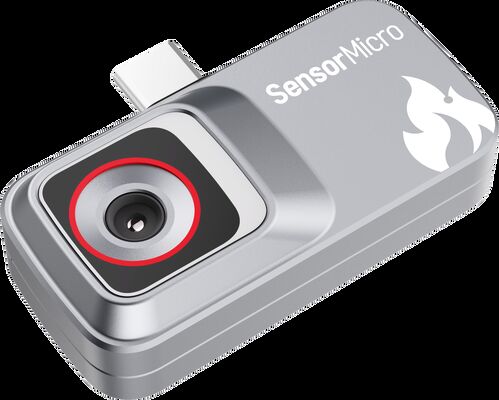

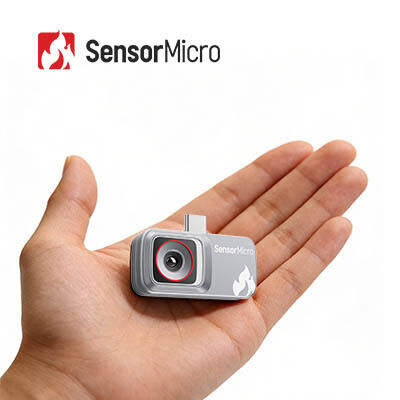

Portable Uncooled Thermal Imaging Module with 120×90 Resolution and 12μm Pixel Size for Thermography

  • Portable Uncooled Thermal Imaging Module with 120×90 Resolution and 12μm Pixel Size for Thermography
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applications AloT, Machine Vision, Industrial Vision, Security Monitoring Type Uncooled LWIR Thermal Camera
Infrared Detector Uncooled VOx FPA Microbolometer Focus Mode Focus Free
Frame Rate 25Hz Spectral Response 8~14μm
Highlight

Uncooled Thermal Imaging Module for Thermography

,

12μm Uncooled Thermal Imaging Module
Leave a Message
Product Description
Portable Uncooled Thermal Imaging Module 120×90/12μm for Thermography
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption.
Equipped with universal control interfaces, the iMC112 simplifies integration and development processes, reducing technical barriers to infrared thermal imaging technology. The module is widely applicable across industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 120×90/12μm wafer-level infrared detector
  • Significant cost advantages for budget-conscious applications
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Dedicated app outputs thermal images and temperature matrices directly
  • Excellent universality across platforms and devices
  • Encased in structural components for enhanced reliability
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface
  • Wide compatibility with existing systems
  • Factory-calibrated temperature data eliminates additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What are the Key Advantages of Plug-in Thermal Cameras?
Portability: Small, lightweight, and compatible with smartphones, tablets, or drones—no need for bulky standalone devices.
Cost-Effectiveness: Fraction of the price of professional thermal cameras, making thermal imaging accessible to various users.
Versatility: Adaptable to multiple use cases via interchangeable attachments.
Ease of Use: Intuitive apps for data visualization and temperature measurement.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors. Our professional application experience supports customers worldwide with advanced infrared detectors, camera cores, and modules featuring versatile formats and wavebands.
Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries including thermography, security & surveillance, personal vision, automotive, and consumer infrared products.
