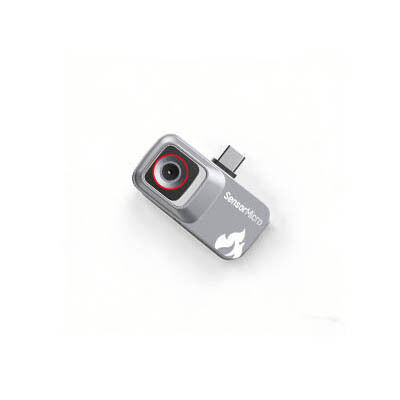

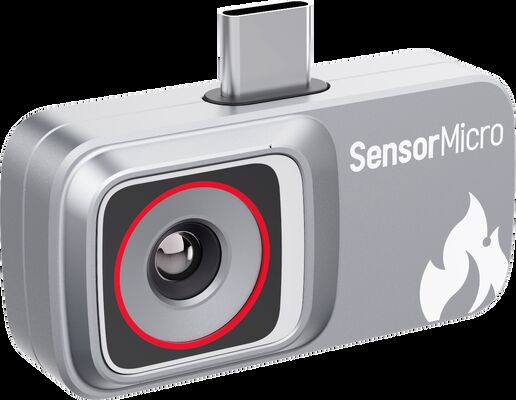

Uncooled Infrared Camera Core with 256×192/12μm for Plug-in Thermal Camera with USB2.0 Interface

  • Uncooled Infrared Camera Core with 256×192/12μm for Plug-in Thermal Camera with USB2.0 Interface
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Storage Temperature -45℃~+85℃
Type Uncooled Thermal Module Digital Video Interface USB2.0
Lens(HFOV/FL) 56°/ 3.2mm Frame Rate 25Hz
Highlight

Uncooled VOx Thermal Imaging Binoculars

,

Multifunctional Thermal Imaging Binoculars

,

Multifunctional Heat Vision Binoculars
Leave a Message
Product Description
Uncooled Infrared Camera Core with 256*192/12μm VOx FPA Microbolometer
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development processes, lowering the technical barrier for implementing infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development requirements
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Customized Services
Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
