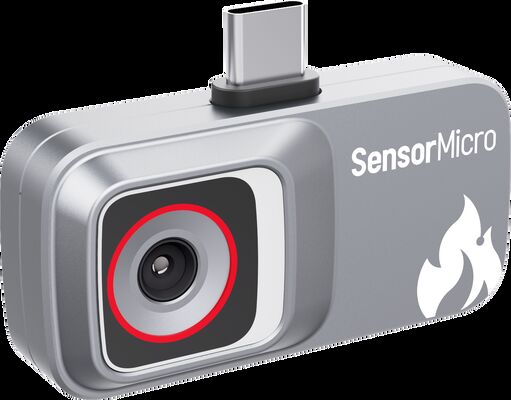

Portable Uncooled Thermal Imaging Camera with 120x90 Resolution and USB2.0 Interface for Industrial Vision

  • Portable Uncooled Thermal Imaging Camera with 120x90 Resolution and USB2.0 Interface for Industrial Vision
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Typical Power Consumption 150mW Storage Temperature -45℃~+85℃
Digital Video Interface USB2.0 Output Data 14bit Raw
Spectral Response 8~14μm Pixel Size 12μm
Highlight

Uncooled Thermal Imaging Camera

,

Industrial Vision Uncooled Thermal Imaging Camera
Leave a Message
Product Description
Uncooled Thermal Imaging Pocket Portable 120x90 Infrared Camera for Industrial Vision
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. The iMC ultra-compact module is a cost-effective and less power-hungry offering. Equipped with universal control interfaces, it simplifies the integration and development process, reducing the technical barrier to infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with a dedicated app to output thermal images and temperature matrices directly, shows great universality
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, no need for additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier; Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment; Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider. We deliver high-performance uncooled and cooled thermal imaging detectors to customers worldwide while sharing our professional application expertise. Our product portfolio covers various array formats, pixel sizes, and spectral band combinations, all featuring high thermal sensitivity and reliability.
SensorMicro provides advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capabilities enable us to meet growing demand across all existing and emerging markets.
