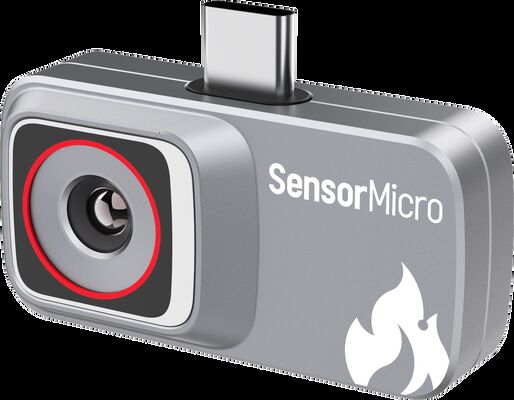

High Accuracy 256×192/12μm Pixel Size Uncooled Thermal Imaging Module for Temperature Measurement

  • High Accuracy 256×192/12μm Pixel Size Uncooled Thermal Imaging Module for Temperature Measurement
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector 256×192/12μm Operating Voltage 3.3V±0.1V
Type Uncooled Thermal Module Storage Temperature -45 °C ~+85°C
Lens (HFOV/FL) 56°/ 3.2mm Output Data 14bit Raw
Highlight

High Accuracy Uncooled Thermal Imaging Binoculars

,

Search Uncooled Thermal Imaging Binoculars

,

12um Handheld Infrared Vision Binoculars
Leave a Message
Product Description
High Accuracy Uncooled Thermal Imaging Module 256×192/12μm for Temperature Measurement
The iMC212 infrared miniature module is built on our self-developed TIMO212 platform, specifically designed for mobile terminal applications. This integrated solution combines an infrared ISP processing board with structural components to deliver thermal images and temperature matrices without requiring temperature calibration, significantly reducing development complexity.
Key Features
Portable and Cost-Effective
  • Features a self-developed 256×192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design optimized for mobile and portable device integration
Robust Structure, Reliable Performance
  • Integrated ISP processing board with intelligent algorithms for direct thermal image and temperature matrix output
  • Fully encased structural components ensure enhanced reliability and system completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for broad compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB 2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What are the key features of plug-in thermal cameras?
Compact & Portable: Typically lightweight (10-50g) and pocket-sized, ideal for on-the-go use without carrying bulky equipment.
Interface Compatibility: Supports universal connections (USB-C for consumer devices; MIPI/HDMI for industrial equipment) to work with multiple host platforms.
Thermal Sensing Core: Integrates microbolometer or cooled infrared detectors, capturing long-wave infrared radiation (8-14 μm) and converting it into thermal images.
Cost-Effective: Eliminates the need for independent displays/batteries, making thermal imaging accessible.
App-Driven Functionality: Relies on dedicated mobile/desktop apps to adjust parameters, capture photos/videos, and analyze thermal data.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our products combine professional application experience with advanced technology to provide versatile infrared solutions across multiple formats and wavebands. Designed for exceptional clarity, sensitivity, and efficiency, SensorMicro detectors integrate seamlessly into diverse systems, empowering next-generation imaging and sensing applications across industries including thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capabilities ensure we can meet growing demand across all existing and emerging markets.
