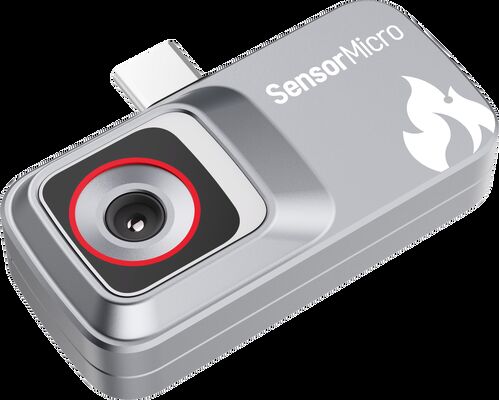

Uncooled VOx FPA Microbolometer Thermal Imaging Module with 120×90 Resolution and 12μm Pixel Size

  • Uncooled VOx FPA Microbolometer Thermal Imaging Module with 120×90 Resolution and 12μm Pixel Size
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Infrared Camera Detector Uncooled LWIR FPA 120x90/12μm
Typical Power Consumption 150mW Lens (HFOV/FL) 50°/1.6mm
Spectral Response 8~14μm NETD ≤50mK
Highlight

Microbolometer Thermal Imaging Module

,

Uncooled VOx FPA Thermal Imaging Module
Leave a Message
Product Description
Uncooled 120×90/12μm VOx FPA Microbolometer Thermal Imaging Module
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology.
The iMC112 infrared miniature module is widely applicable across multiple industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.

Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance

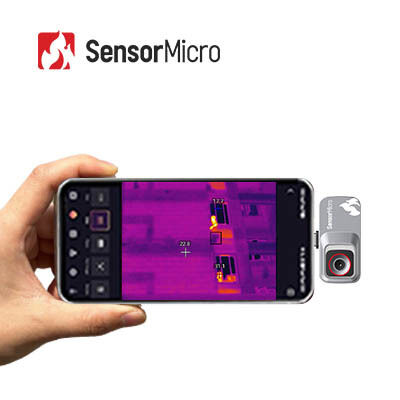

  • Paired with a dedicated app to output thermal images and temperature matrices directly, showing great universality
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort

Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS

Frequently Asked Questions
What are the Key Advantages of Plug-in Thermal Cameras?
Portability: Small, lightweight, and compatible with smartphones, tablets, or drones—no need for bulky standalone devices.
Cost-Effectiveness: Fraction of the price of professional thermal cameras, making thermal imaging accessible to small businesses, consumers, and industries with limited budgets.
Versatility: Adaptable to multiple use cases via interchangeable attachments (e.g., smartphone cases, drone payloads, industrial adapters).
Ease of Use: Intuitive apps for data visualization, temperature measurement, and image sharing—no specialized training required for basic operation.

About SensorMicro
SensorMicro is the world's leading infrared detector manufacturer and service provider. We provide customers worldwide with high-performance uncooled and cooled thermal imaging detectors and share our professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
