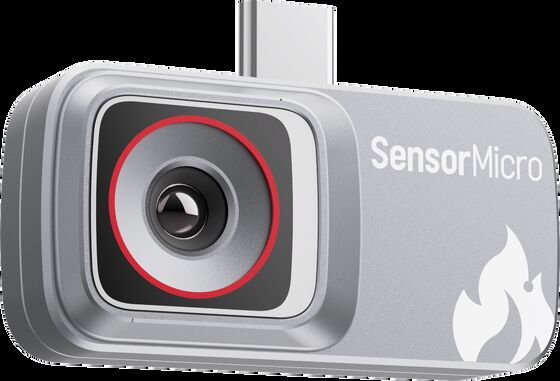

Ultra-compact 256×192/12μm Plug-in Thermal Camera for Mobile Devices

  • Ultra-compact 256×192/12μm Plug-in Thermal Camera for Mobile Devices
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Uncooled VOx FPA Microbolometer Operating Voltage 3.3V±0.1V
Digital Video Interface USB2.0 Focus Mode Focus Free
Typical Power Consumption 300mW Output Data 14bit Raw
Highlight

Fusion Thermal Imaging Binocular

,

Infrared Thermal Imaging Binocular 800x600

,

Uncooled Handheld Fusion Binocular
Leave a Message
Product Description
Ultra-compact Cost-effective 256*192/12μm Plug-in Infrared Thermal Camera
Product Overview
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development processes while lowering the technical barrier for implementing infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light requires natural light and transforms weak natural light images into enhanced electronic images through image intensifiers. Active IR actively emits infrared light and uses infrared beams reflected by the target, offering very poor concealment. Thermal imaging doesn't require any light and is a passive infrared night vision technology that detects infrared radiation differences between targets and scenes or different parts of an object. It is not affected by changes in surrounding lighting conditions and performs reliably during night operations or in fog, rain, and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot block thermal imaging. However, infrared rays cannot penetrate walls, and glass can also block IR. If you need to avoid detection, you can conceal yourself behind glass or walls to block thermal imaging.
Standardized Service & Support
  • Complete Documentation: Product manuals, setup guides, and selection references for immediate implementation
  • Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification services
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
  • Warranty Coverage: Original parts and strict process adherence to restore optimal performance
