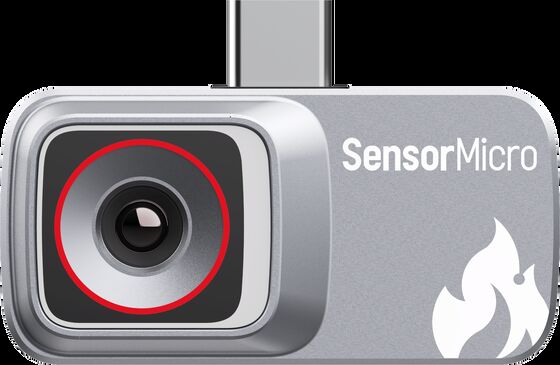

Plug-in Thermal Camera with 256×192 Resolution and 12μm Pixel Size for Smartphones via USB 2.0 Interface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Plug-in Thermal Camera For Smartphones | Resolution | 256×192 |
|---|---|---|---|
| Pixel Size | 12μm | Spectral Response | 8~14μm |
| NETD | ≤50mK | Output Data | 14bit Raw |
| Highlight | Plug-in Thermal Camera for Smartphones,Plug-in Thermal Camera 12μm Pixel |
||
Product Description

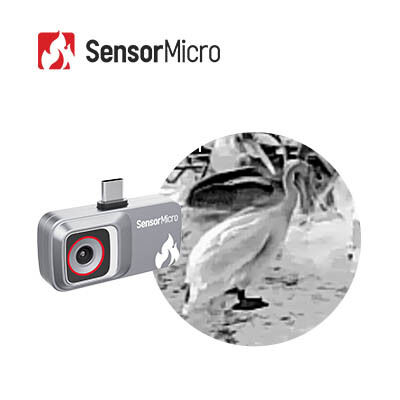

Plug-in 256×192/12μm Thermal Camera for Smartphones & Industrial Inspection
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
- Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
- Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
- Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
- Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
- Provides standard and widely compatible USB 2.0 digital video output interface
- Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
| Model | iMC212 |
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 56°/ 3.2mm |
| Digital Video Interface | USB2.0 |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 300mW |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃～-60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | CE, FCC, RoHS |
Frequently Asked Questions
What are the key features of plug-in thermal cameras?
Compact & Portable: Typically lightweight (10-50g) and pocket-sized, ideal for on-the-go use without carrying bulky equipment.
Interface Compatibility: Supports universal connections (USB-C for consumer devices; MIPI/HDMI for industrial equipment) to work with multiple host platforms.
Thermal Sensing Core: Integrates microbolometer or cooled infrared detectors, capturing long-wave infrared radiation (8-14 μm) and converting it into thermal images.
Cost-Effective: Eliminates the need for independent displays/batteries, making thermal imaging accessible.
App-Driven Functionality: Relies on dedicated mobile/desktop apps to adjust parameters, capture photos/videos, and analyze thermal data.
Interface Compatibility: Supports universal connections (USB-C for consumer devices; MIPI/HDMI for industrial equipment) to work with multiple host platforms.
Thermal Sensing Core: Integrates microbolometer or cooled infrared detectors, capturing long-wave infrared radiation (8-14 μm) and converting it into thermal images.
Cost-Effective: Eliminates the need for independent displays/batteries, making thermal imaging accessible.
App-Driven Functionality: Relies on dedicated mobile/desktop apps to adjust parameters, capture photos/videos, and analyze thermal data.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our products include advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our solutions integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries including thermography, security & surveillance, personal vision, automotive, and consumer infrared products.
