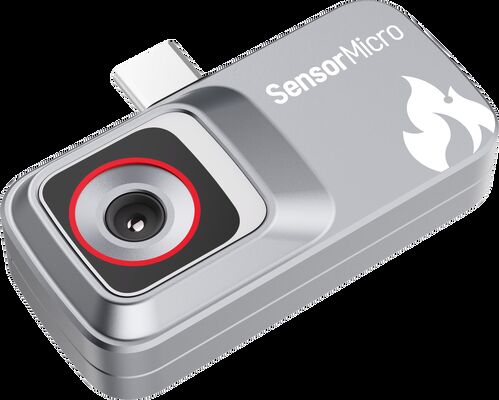

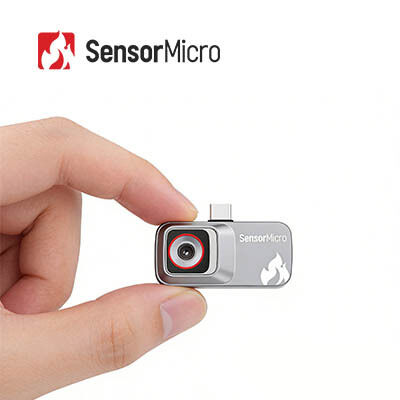

Plug-in Thermal Imaging Camera with 120×90/12μm Uncooled VOx Microbolometer and Focus Free ≤50mK NETD

  • Plug-in Thermal Imaging Camera with 120×90/12μm Uncooled VOx Microbolometer and Focus Free ≤50mK NETD
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NETD ≤50mK Infrared Sensor 120×90/12μm
Focus Mode Focus Free Storage Temperature -45℃~+85℃
Operating Temperature -20℃～-60℃ Operating Voltage 3.3V±0.1V
Highlight

Uncooled Plug-in Thermal Imaging Camera

,

Plug-in Thermal Imaging Camera 50mK
Leave a Message
Product Description
Plug-in Thermal Imaging Camera with 120×90/12μm Uncooled VOx Microbolometer
Product Overview
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless.
Key Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with a dedicated app to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, no need for additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier.

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment.

Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. Not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
About SensorMicro
SensorMicro is the world leading infrared detector manufacturer and service provider. We provide customers worldwide with high performance uncooled and cooled thermal imaging detectors and share professional application experience. Our product portfolio covers many different array formats, various pixel sizes and multiple spectral band combinations, all with high thermal sensitivity and reliability.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
