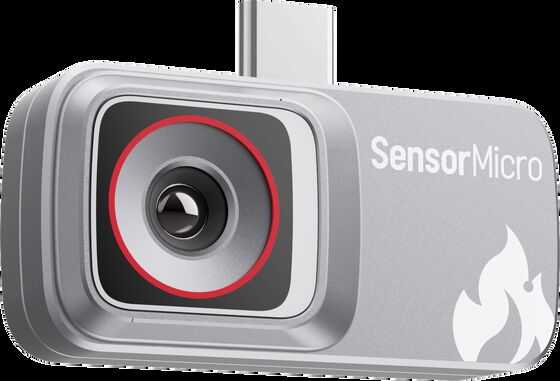

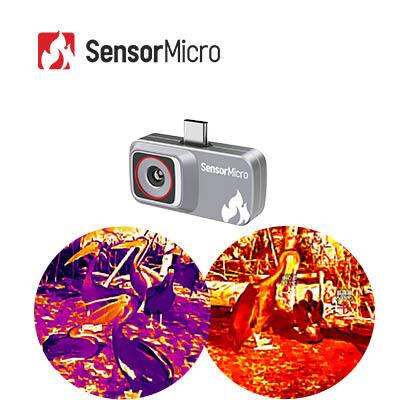

Plug-in 256×192/12μm Uncooled Thermal Imaging Module with USB2.0 Interface and 25Hz Frame Rate for Fast Integration

  • Plug-in 256×192/12μm Uncooled Thermal Imaging Module with USB2.0 Interface and 25Hz Frame Rate for Fast Integration
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector 256×192/12μm Digital Video Interface USB2.0
Storage Temperature -45℃~+85℃ Operating Temperature -20℃～-60℃
Frame Rate 25Hz Output Data 14bit Raw
Highlight

12μm Uncooled Thermal Imaging Module

,

Plug-in Uncooled Thermal Imaging Module
Leave a Message
Product Description
Plug-in 256*192/12μm Uncooled Thermal Imaging Module for Fast Integration
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. The iMC ultra-compact module is a cost-effective and low-power solution. Equipped with universal control interfaces, it simplifies the integration and development process, reducing the technical barrier for infrared thermal imaging technology adoption.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What are the key features of plug-in thermal cameras?
Compact & Portable: Typically lightweight (10-50g) and pocket-sized, ideal for on-the-go use without carrying bulky equipment.
Interface Compatibility: Supports universal connections (USB-C for consumer devices; MIPI/HDMI for industrial equipment) to work with multiple host platforms.
Thermal Sensing Core: Integrates microbolometer or cooled infrared detectors, capturing long-wave infrared radiation (8-14 μm) and converting it into thermal images.
Cost-Effective: Eliminates the need for independent displays/batteries, making thermal imaging accessible.
App-Driven Functionality: Relies on dedicated mobile/desktop apps to adjust parameters, capture photos/videos, and analyze thermal data.
