Multifunctional Uncooled Thermal Imaging Binoculars Handheld For Observation

Place of Origin WUHAN
Brand Name GST
Model Number IR522-WM
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type Uncooled Thermal Binocular Infrared Camera Uncooled VOx FPA Microbolometer
Used For Observation, Surveillance, Search And Rescue Laser Wavelength 1.535μm, Safe Band For Human Eyes
High Light

Multifunctional Thermal Imaging Binoculars


Observation Uncooled Thermal Imaging Binoculars

Leave a Message
Product Description
Brief Introduction

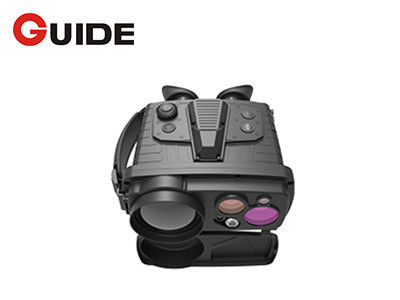

IR522-WM Handheld Continuous Optical Zoom Uncooled Thermal Imaging Binoculars


Product Description


IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom. Combined with dual sensors, the IR522-WM thermal imaging binocular could output clear thermal imaging with 640x512 resolution in total darkness or even in harsh environments with poor light condition. It also integrates the visual camera that offers field of view more than 3°x2.2°.


This binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target. It is dedicated to long range target location and surveillance.


Main Features


- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions




Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C




1.Thermal imaging binoculars vs. night vision binoculars


Compared with thermal imaging binoculars, night vision binoculars are much cheaper.


Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.


While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.
