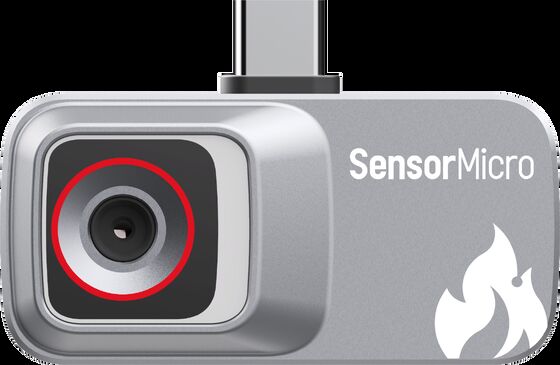

Plug-and-play Infrared Camera Module with 120×90 Resolution and Wafer-level Infrared Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Plug-and-play Infrared Camera Module | Typical Power Consumption | 150mW |
|---|---|---|---|
| Lens (HFOV/FL) | 50°/1.6mm | Output Data | 14bit Raw |
| Spectral Response | 8~14μm | Resolution | 120×90 |
| Highlight | Plug-and-play Infrared Camera Module,Infrared Camera Module 120×90 Resolution |
||
Product Description
Plug-and-play Infrared Camera Module with 120×90/12μm Wafer-level Infrared Detector
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption.
Equipped with universal control interfaces, the iMC112 simplifies integration and development processes, reducing technical barriers to infrared thermal imaging technology. The module is widely applicable across industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
- Equipped with self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages
- Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
- Paired with dedicated app for direct thermal image and temperature matrix output
- Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
- Standard USB 2.0 digital video output interface for wide compatibility
- Factory-calibrated temperature data eliminates additional development effort
Technical Specifications
| Model | iMC112 |
|---|---|
| Resolution | 120×90 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 50°/1.6mm |
| Digital Video Interface | USB2.0 |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 150mW |
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃～-60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | CE, FCC, RoHS |
Frequently Asked Questions
What are the Key Advantages of Plug-in Thermal Cameras?
Portability: Small, lightweight design compatible with smartphones, tablets, and drones—no bulky standalone devices required.
Cost-Effectiveness: Fraction of professional thermal camera pricing, making thermal imaging accessible to small businesses and budget-conscious industries.
Versatility: Adaptable to multiple use cases with interchangeable attachments including smartphone cases, drone payloads, and industrial adapters.
Ease of Use: Intuitive apps for data visualization, temperature measurement, and image sharing—no specialized training required for basic operation.
Cost-Effectiveness: Fraction of professional thermal camera pricing, making thermal imaging accessible to small businesses and budget-conscious industries.
Versatility: Adaptable to multiple use cases with interchangeable attachments including smartphone cases, drone payloads, and industrial adapters.
Ease of Use: Intuitive apps for data visualization, temperature measurement, and image sharing—no specialized training required for basic operation.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our professional application experience supports diverse implementation needs.
We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capabilities ensure we can meet growing demand across all existing and emerging markets.
