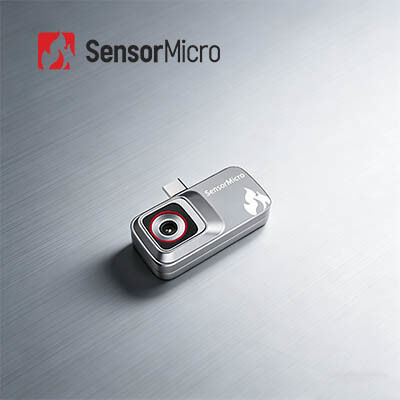

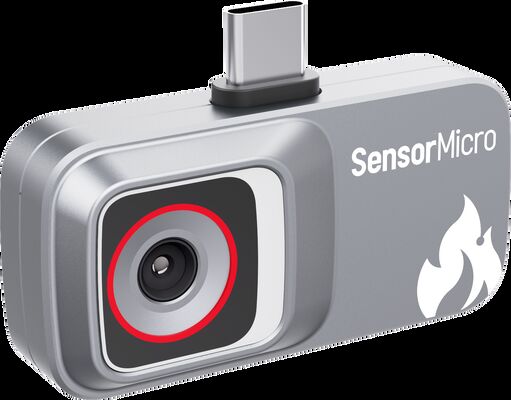

Pocket-sized Uncooled Infrared Camera Module with 120×90 Resolution 12μm Pixel Size and USB2.0 Interface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Pocket-sized Infrared Camera | Typical Power Consumption | 150mW |
|---|---|---|---|
| Lens (HFOV/FL) | 50°/1.6mm | Digital Video Interface | USB2.0 |
| Resolution | 120×90 | Pixel Size | 12μm |
| Highlight | Pocket-sized Uncooled Infrared Camera Module,12μm Pixel Uncooled Infrared Camera Module |
||
Product Description
Interface Compatibility Pocket-sized Uncooled 120*90/12μm Infrared Camera Module
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology.
The iMC112 infrared miniature module serves multiple industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
- Equipped with a self-developed 120*90/12μm wafer-level infrared detector, offering significant cost advantages
- Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
- Paired with a dedicated app to output thermal images and temperature matrices directly, showing excellent universality
- Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
- Provides standard and widely compatible USB 2.0 digital video output interface
- Factory-calibrated temperature data, eliminating additional development effort
Specifications
| Model | iMC112 |
|---|---|
| Resolution | 120*90 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 50°/1.6mm |
| Digital Video Interface | USB2.0 |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 150mW |
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃～-60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | CE, FCC, RoHS |
Frequently Asked Questions
What are the Key Advantages of Plug-in Thermal Cameras?
- Portability: Small, lightweight, and compatible with smartphones, tablets, or drones—no need for bulky standalone devices
- Cost-Effectiveness: Fraction of the price of professional thermal cameras, making thermal imaging accessible to small businesses, consumers, and industries with limited budgets
- Versatility: Adaptable to multiple use cases via interchangeable attachments (e.g., smartphone cases, drone payloads, industrial adapters)
- Ease of Use: Intuitive apps for data visualization, temperature measurement, and image sharing—no specialized training required for basic operation
