WUHAN GLOBAL SENSOR TECHNOLOGY CO., LTD.
Home ProductsThermal Imaging Binoculars

Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024

I'm Online Chat Now

Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024

Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024
Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024

Large Image :  Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR5213-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Infrared Sensor: 1280x1024
LRF Range: Min Rage≤50m; Max Range: ≥6km Storage Temperature: -55 °C ~+70°C
Weight: ≤ 2.5kg (With Battery) Dimension: ≤250mm×250mm×120mm
High Light:

VOx Thermal Imaging Binoculars

,

1280x1024 Thermal Imaging Binoculars

,

3X Uncooled Thermal Camera Binoculars

Multifunctional Uncooled VOx Thermal Imaging Binoculars

Brief Introduction

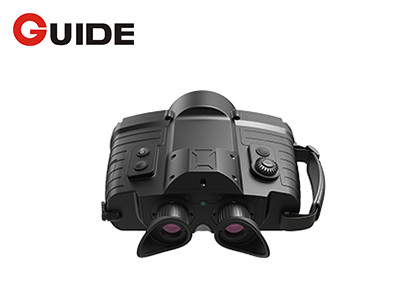

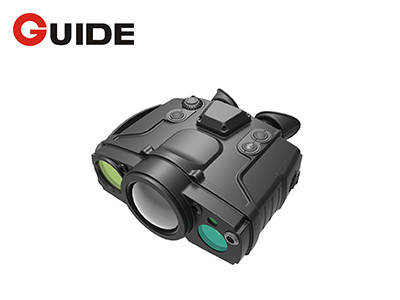

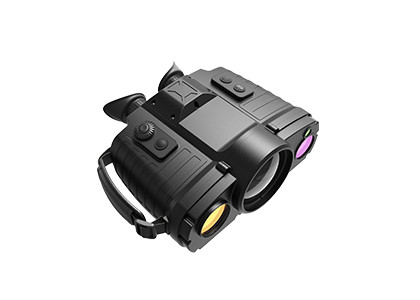

IR5213-WM Handheld Uncooled Thermal Binocular


Product Description


The IR5213-WM handheld uncooled binocular is specially designed for the location and surveillance of targets at night or in bad weather with poor light condition, such as rain and storm, heavy fog etc.
With the integration of infrared camera, visual camera, laser rangefinder, positioning, electronic compass and memory module inside the device, observers can get a better understanding of the target location to ensure quick and error-free assessment of the surrounding situations.


Main Features


- Multi-functional integrations: visible light, thermal imaging, laser rangefinder, positioning, electronic compass etc.
- Built-in photo, video recorder and storage function
- Support image and video data output
- Various functions: infrared contrast and brightness adjustment; infrared electric focusing, infrared image polarity conversion and 4x magnification
- Include power adapter for the charge and power supply of the device
- Receive guidance and instructions and support voice input assistant operation


Specifications



ModelIR5213-WM
Infrared Camera
Detector TypeUncooled VOx FPA Microbolometer
Resolution1280x1024
Spectral Range8~14μm
Lens Zoom3X Continuous Zoom
F#1.2
Field of ViewWide FOV: ≥24°×28°
Narrow FOV: ≥6.5°×4.9°
Focusing ModeElectric Continuous Zoom
Thermal Image Display
Image ColorWhite Hot, Black Hot, Pseudo Color (3 Modes)
ZoomElectronic Zoom; 1.0X~4.0X Magnification
Power Supply
Battery18650 Lithium Battery
Working Time≥6h (@25℃)
Storage
ModePhoto, Video Recorder; Built-in Storage
Memory≥128GB
Visual Camera
Detector TypeCMOS
Resolution≥2560×1920
Lens Zoom20X Continuous Zoom
Field of ViewMax FOV:≥60°x45°
Min FOV:≥6.5°x4.9°
Focusing ModeElectric Continuous Zoom
Laser Rangefinder
Laser Wavelength1.535μm, Safe band for human eyes
LRF RangeMin Rage≤50m; Max Range: ≥6km
Measuring Accuracy≤2m (50m~1.5km)
≤3m (1.5km~6.0km)
Accuracy Rate≥98%
Environmental Adaptability
Working Temperature-40 °C ~+55°C
Storage Temperature-55 °C ~+70°C
Physical Characteristics
Weight≤ 2.5kg (With Battery)
Dimension≤250mm×250mm×120mm



FAQs


1.Thermal imaging binoculars vs. night vision binoculars

Compared with thermal imaging binoculars, night vision binoculars are much cheaper.

Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.

While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.


About Global Sensor Technology


Uncooled VOx Thermal Imaging Binoculars Multifunctional 1280x1024 0
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
