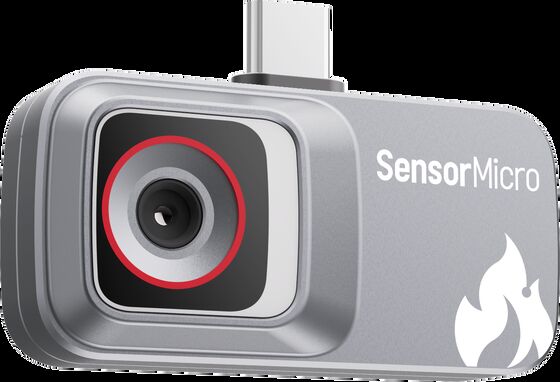

iMC112 Infrared Camera Module with 120×90/12μm Wafer-level Uncooled FPA Microbolometer

  • iMC112 Infrared Camera Module with 120×90/12μm Wafer-level Uncooled FPA Microbolometer
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Resoultion 120×90/12μm
Detector Type Uncooled FPA Microbolometer Operating Temperature -20℃～-60℃
Typical Power Consumption 150mW Digital Video Interface USB2.0
Highlight

iMC112 Infrared Camera Module

,

Uncooled FPA Microbolometer Infrared Camera Module
Leave a Message
Product Description
iMC112 Infrared Camera Module with 120×90/12μm Wafer-level Infrared Detector
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology. Ideal for applications including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with a dedicated app to output thermal images and temperature matrices directly, shows great universality
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, no need for additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Application Scenarios
  • HVAC: Pipeline leakage detection, radiator efficiency inspection
  • Electrical appliances: Residential panel overload hotspot screening
  • House Inspection: Investigation of Window/Door Heat Loss
  • Automobiles: Quick Exhaust System Scan
  • DIY: Pipeline Leakage Identification
