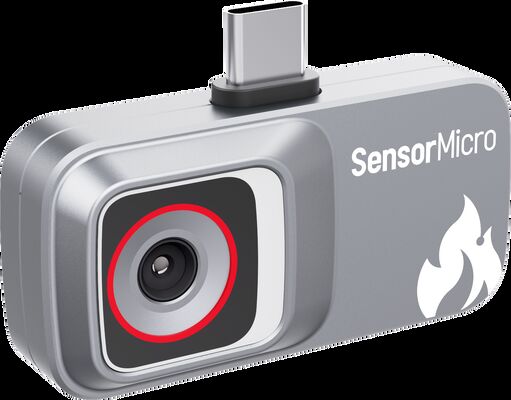

Affordable Smartphone Attachment Thermal Imaging Camera with 120×90 Resolution and 12μm Pixel Size Wafer-Level-Package

  • Affordable Smartphone Attachment Thermal Imaging Camera with 120×90 Resolution and 12μm Pixel Size Wafer-Level-Package
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Uncooled Focal Plane Array Microbolometer Detector Package Wafer-level-package
Resolution 120×90 Pixel Size 12μm
Highlight

Smartphone Attachment Thermal Imaging Camera

,

Thermal Imaging Camera 120×90 Resolution
Leave a Message
Product Description
Affordable Smartphone Attachment Thermal Imaging Camera 120×90/12μm
Product Overview
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, specifically designed for mobile terminal applications. When paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This pocket-sized thermal camera is ideal for outdoor enthusiasts, offering sharp 256×192 resolution and easy plug-and-play functionality. The ultra-compact iMC module provides cost-effective performance with low power consumption, featuring universal control interfaces that simplify integration and reduce technical barriers to infrared thermal imaging technology.
Key Features
  • Portable and Cost-Effective: Equipped with a self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages and ultra-compact design ideal for mobile devices
  • Robust Structure, Reliable Performance: Paired with dedicated app for direct thermal image and temperature matrix output, encased in structural components for enhanced reliability
  • Mainstream Interfaces, Easy Development: Standard USB 2.0 digital video output interface with factory-calibrated temperature data requiring no additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the application of plug-in thermal cameras?
Plug-in thermal cameras (portable, external thermal imaging modules that connect to smartphones, tablets, drones, or industrial devices) leverage the advantages of portability, low cost, and high compatibility. They extend thermal imaging capabilities to mainstream devices, enabling widespread applications across consumer, industrial, professional, and emerging technology fields.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs. Backed by Guide Infrared, a world leader in the infrared industry, SensorMicro benefits from over three decades of accumulated experience. We exist to empower people and systems to see beyond the surface—revealing patterns, problems, and possibilities that lie beneath. SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across multiple industries. With a wide range of resolutions, interfaces, and form factors, our products enable seamless deployment across sectors including security, energy, environmental monitoring, healthcare, and industrial automation. By providing both detectors and modules across uncooled and cooled technologies, SensorMicro empowers partners with versatile, scalable infrared solutions—unlocking new possibilities in thermal imaging innovation worldwide.
