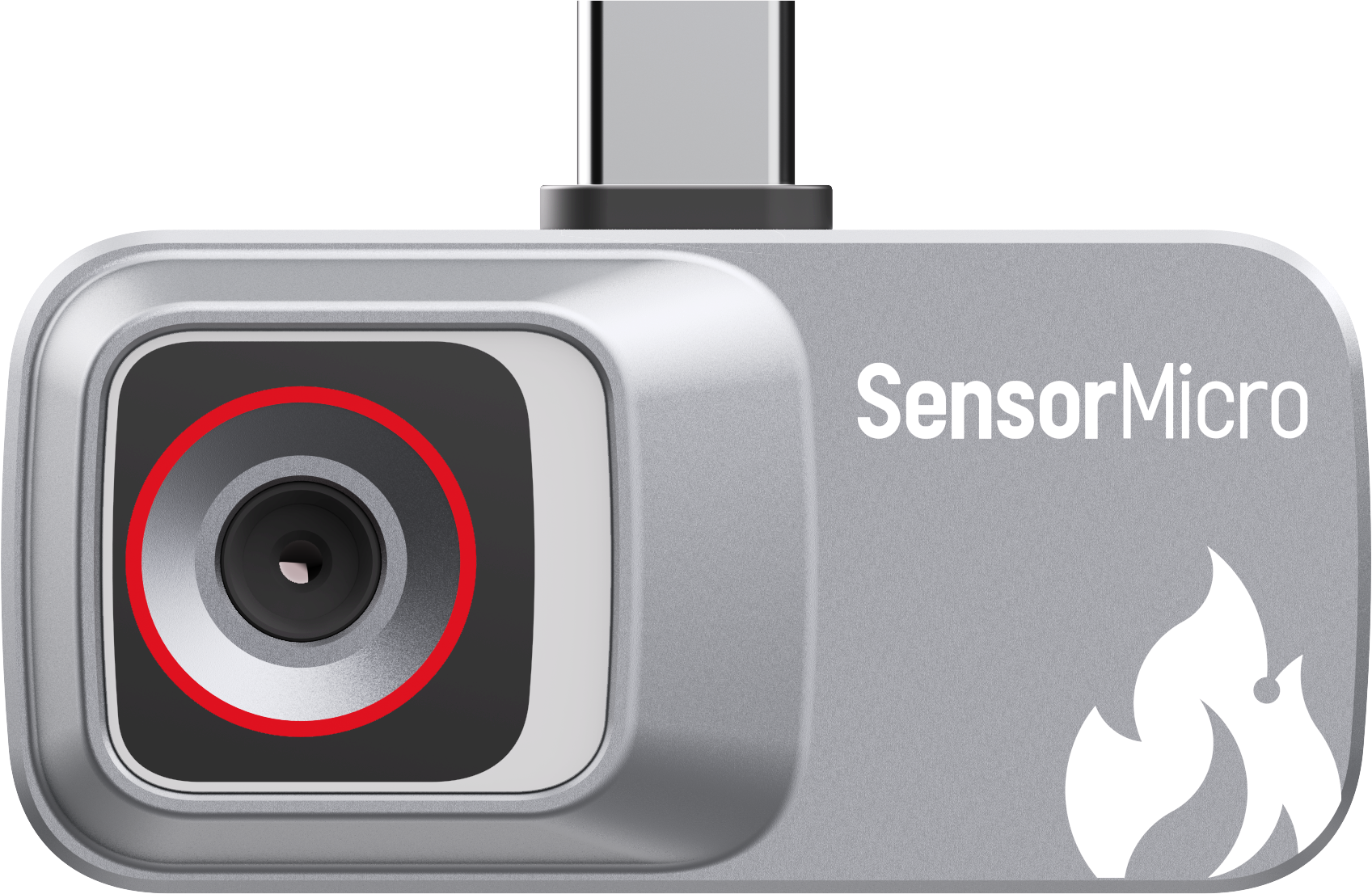

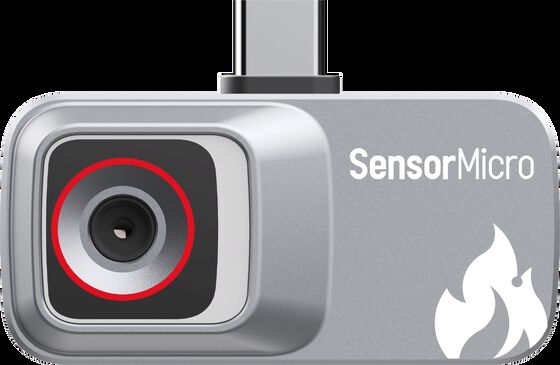

Smartphone-compatible Thermal Camera Module 120×90/12μm Uncooled Infrared Camera

  • Smartphone-compatible Thermal Camera Module 120×90/12μm Uncooled Infrared Camera
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Focus Mode Focus Free Lens (HFOV/FL) 50°/1.6mm
Product Name Smartphone-compatible Thermal Camera Detector Type Uncooled VOx FPA Microbolometer
Pixel Pitch 12μm Resolution 120×90
Highlight

Smartphone-compatible Thermal Camera Module

,

12μm Uncooled Infrared Thermal Camera Module
Leave a Message
Product Description
Smartphone-compatible Thermal Camera Module Uncooled Infrared Camera 120*90/12μm
Product Overview
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, specifically designed for mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption and universal control interfaces that simplify integration.
Main Features
  • Portable and Cost-Effective: Features a self-developed 120*90/12μm wafer-level infrared detector with significant cost advantages and ultra-compact design ideal for mobile and portable devices
  • Robust Structure, Reliable Performance: Paired with a dedicated app to output thermal images and temperature matrices directly, with structural components for enhanced reliability
  • Mainstream Interfaces, Easy Development: Provides standard USB 2.0 digital video output interface with factory-calibrated temperature data requiring no additional development effort
Technical Specifications
Model iMC112
Resolution 120*90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light requires natural light and transforms weak natural light images into enhanced electronic images through image intensifiers. Active IR actively emits infrared light and uses infrared beams reflected by targets, offering poor concealment. Thermal imaging doesn't require any light and is a passive infrared night vision system that detects infrared radiation differences between targets and scenes or different parts of an object. It is not affected by changes in surrounding lighting conditions and performs reliably during night or in fog, rain, and other harsh environments.
Can you block thermal imaging?
In most cases, thermal imaging cannot be blocked. However, infrared rays cannot penetrate walls, and glass can block IR. To avoid detection, you can conceal behind glass or walls to block thermal imaging.
Applications
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries. SensorMicro Infrared Camera Cores have been widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability meets growing demand from all existing and emerging markets.
