PAL RS232 Uncooled Thermal Imaging cameras Handheld 640×512

Place of Origin WUHAN
Brand Name GST
Model Number IR522-WM
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type Uncooled Thermal Binocular FOV ≥6.1°×5.0°
Product Name Handheld Uncooled Thermal Imaging Binoculars For Search And Surveillance Detector Type Uncooled VOx FPA Microbolometer
Pixel Pitch 12μm Resolution 640×512
High Light

RS232 Uncooled Thermal Imaging cameras


PAL Uncooled Thermal Imaging cameras


640×512 Uncooled Thermal Imager

Leave a Message
Product Description

Handheld Uncooled Thermal Imaging Binoculars For Search And Surveillance

Brief Introduction

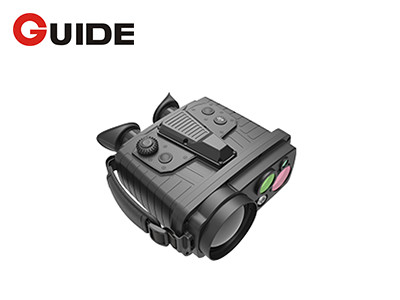

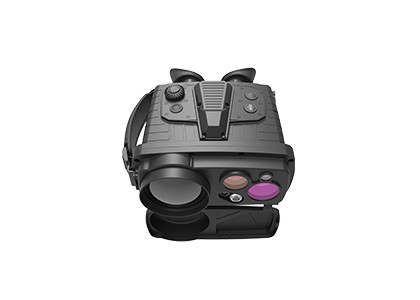

IR522-WM Handheld Uncooled Thermal Binocular


Product Description


The IR522-WM is a kind of handheld uncooled thermal binocular that could work at night or bad weather condition for search and surveillance purpose.

It integrates infrared camera, visual camera, laser rangefinder, positioning, digital compass and memory module. Users could carry out long range missions, like scout, target range finding, target positioning, etc.


Main Features


- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions




Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C




1.What is the difference between low light, active IR and thermal imaging?


Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.


2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.


About Global Sensor Technology


PAL RS232 Uncooled Thermal Imaging cameras Handheld 640×512 0

PAL RS232 Uncooled Thermal Imaging cameras Handheld 640×512 1


Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
