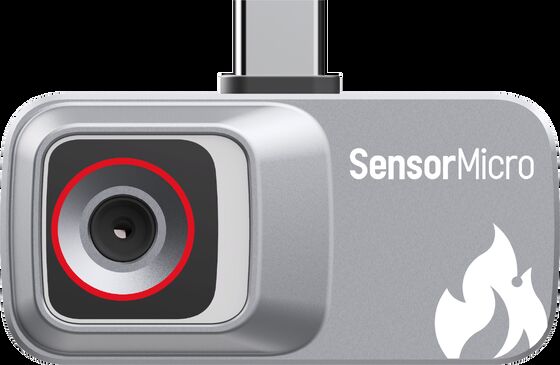

Portable Thermal Imaging Module with 120×90 Resolution Wafer-level Infrared Detector and USB2.0 Interface

  • Portable Thermal Imaging Module with 120×90 Resolution Wafer-level Infrared Detector and USB2.0 Interface
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Plug-in Thermal Camera Spectral Response 8~14μm
Digital Video Interface USB2.0 Typical Power Consumption 150mW
Focus Mode Focus Free NETD ≤50mK
Highlight

Portable Thermal Imaging Module

,

Thermal Imaging Module With USB2.0 Interface
Leave a Message
Product Description
Portable & External Thermal Imaging Module with 120×90/12μm Wafer-level Infrared Detector
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with dedicated app to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and durability
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for wide compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~+550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light requires natural light and transforms weak natural light images into enhanced electronic images through image intensifiers.
Active IR actively emits infrared light and uses infrared beams reflected by targets, offering poor concealment.
Thermal imaging doesn't require any light source and is a passive infrared night vision technology that detects infrared radiation differences between targets and scenes or different parts of an object. It remains unaffected by changes in surrounding lighting conditions, during night operations, or in fog, rain, and other harsh environments.
Can you block thermal imaging?
In most cases, thermal imaging cannot be blocked. However, infrared rays cannot penetrate walls, and glass can block IR radiation. To avoid detection, conceal behind glass or walls to block thermal imaging.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider. We deliver high-performance uncooled and cooled thermal imaging detectors to customers worldwide while sharing our professional application expertise. Our product portfolio covers various array formats, pixel sizes, and spectral band combinations, all featuring high thermal sensitivity and reliability.
SensorMicro provides advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capabilities enable us to meet growing demand across all existing and emerging markets.
