70mm Focus Length AVI Handheld Laser Rangefinder 3.5V 25fps

Place of Origin WUHAN
Brand Name GST
Model Number IR5212-WM
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Handheld Laser Rangefinder Low Light Resolution 1920Hx1200V
Visible Light Resolution 2560Hx1440V Power Consumption 3.5V
High Light

AVI Handheld Laser Rangefinder


Handheld Laser Rangefinder 25fps


70mm Focus Length Laser Rangefinder

Leave a Message
Product Description

25fps Visible Light And Low Light Handheld Laser Rangefinder

Brief Introduction

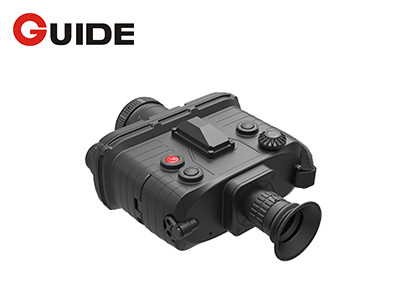

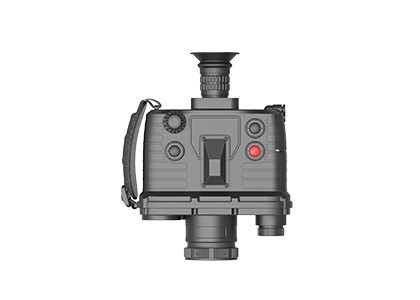

IR5212-WM New Handheld Laser Rangefinder

Product Description

The IR5212-WM is a new hand-held laser rangefinder with a certain ability to identify camouflage. The product has two modes: visible light and low light, which can be used for day and night observation. It has also other functions like image / video storage, playback and delete, speech recognition and broadcast etc.
This laser rangefinder could measure distance between multiple target points, and also memorize target bearing, distance and time. It
supports power control (on/off), switching mode, contrast adjustment, brightness adjustment, focusing, video output, serial communication interface, local OLED display and connection to external display.

Main Features

- Low light detector: 12μm low illuminance digital CMOS image sensor
- Visible light detector: 3μm digital CMOS image sensor
- Storage memory: 64GB
- Pic format: JPEG/PNG
- Video format: AVI



Low Light
Detector12μm Low Illuminance Digital CMOS Image Sensor
Frame Rate25fps
Focus Length70mm
FOV9°x6.7° (±5%)
Visible Light
Detector3μm Digital CMOS Image Sensor
Frame Rate25fps
Focus Length105mm
FOV3°x2.2° (±5%)
Pic FormatJPEG/PNG
Video FormatAVI
Color OLEDHigh Resolution Color OLED
Power Supply
Built-in Battery18650
Power Consumption3.5V
Environmental Adaptability
Working Temperature-40℃~+55℃
Storage Temperature-55℃~+70℃
Physical Characteristics
Safety Box
External Cable
Power Adapter
Portable Bag



1.What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;
Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
2. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.

About Global Sensor Technology

70mm Focus Length AVI Handheld Laser Rangefinder 3.5V 25fps 0
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
