Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512

I'm Online Chat Now

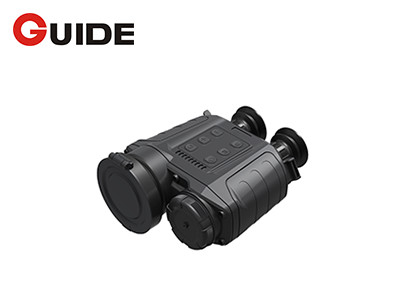

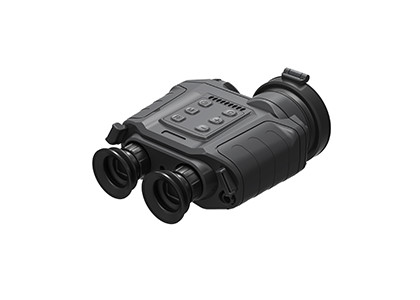

Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512

Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512
Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512

Large Image :  Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR516C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Thermal Imaging Sensor: 640x512/12µm
Dimension: ≤215x170x100mm Weight: ≤1.5KG
High Light:

Night Vision Uncooled Thermal Camera Binoculars

,

Lightweight Thermal Camera Binoculars 640x512

Thermal Binocular


Light Weight 640x512 Uncooled Thermal Imaging Binoculars for Night Vision


Product Description


The IR516C portable uncoooled thermal binocular integrates the 640x512 uncooled VOx FPA microbolometer with spectral range of 8~14μm and ensures very stable performance. Its binocular design reduces eye fatigue during longer viewing and enhances the natural look of objects.

Combined with the 640x512/12µm highly-sensitive thermal imaging sensor, this thermal imaging binocular provides exceptional detection capabilities. The smallest temperature differences will be clearly visible and hidden targets can be detected in very poor light conditions or total darkness, especially in harsh weather with wind, fog, rain and snow.

Global Sensor Technology is committed to opening a new vision for the infrared thermal imaging industrial. We specialize in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules to provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.


Main Features


- Realize detection, identification and recognition of targets with thermal imaging technology
- Built-in photo, video recorder and replay functions
- Output photo and video via USB interface
- Support infrared electric focusing, pseudo color, 2х/4x magnification and cursor control
- Support adjustment of infrared contrast, brightness, auto compensation and display control of heat trace


Specifications



ModelIR516C
Infrared Camera
DetectorUncooled VOx FPA Microbolometer
Resolution640x512
Pixel Pitch12μm
Spectral Range8-14μm
Infrared Optics
Focal Length61mm
FOV7.32°X5.86°
F#0.8
Storage
Memory32G
Pic FormatJPG
Video FormatAVI
Display
Color OLEDHigh Resolution OLED
OcularMonocular
Power Supply
Input VoltageDC12V±0.5V
Battery18650/2 pcs
Continuous Working Time>4hs (Room Temp.)
Physical Characteristics
Weight≤1.5kg
Dimension≤215x170x100mm
Mount Type1/4" Socket
Environmental Adaptability
Working Temperature-40 ℃-+55℃
Storage Temperature-40℃-+60℃
Accessories
StandardBattery
Charger
Portable Bag
Safety Box
External Cable
External Display Terminal
Power Adaptor
Tripod
Portable Bag



FAQs


1.What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;
Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.

2. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.


About Global Sensor Technology


Night Vision Uncooled Thermal Camera Binoculars Lightweight 640x512 0
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
