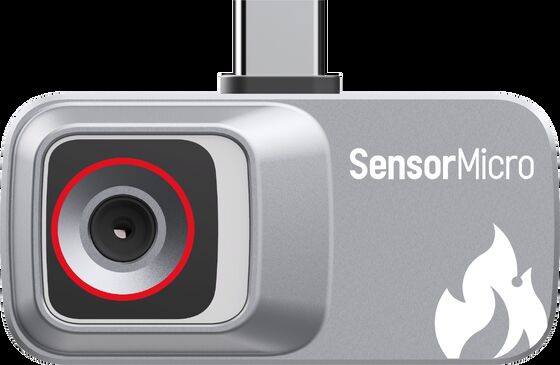

iMC112 Infrared Miniature Module 120×90/12μm Uncooled Thermal Module with Focus Free and 25Hz Frame Rate for Mobile Devices

  • iMC112 Infrared Miniature Module 120×90/12μm Uncooled Thermal Module with Focus Free and 25Hz Frame Rate for Mobile Devices
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Uncooled Thermal Module Infrared Detector 120x90/12µm
Focus Mode Focus Free Lens (HFOV/FL) 50°/1.6mm
Frame Rate 25Hz NETD ≤50mK
Highlight

iMC112 Infrared Miniature Module

,

Infrared Miniature Module with Focus Free
Leave a Message
Product Description
iMC112 Infrared Miniature Module 120×90/12μm Uncooled for Mobile Devices
Thermal Imaging Module
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, specifically designed for mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, simplifying development processes.
This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it streamlines integration and development while reducing technical barriers to infrared thermal imaging technology.
Main Features
· Portable and Cost-Effective
Equipped with self-developed 120×90/12μm wafer-level infrared detector
Ultra-compact design optimized for mobile and portable devices
· Robust Structure, Reliable Performance
Dedicated app compatibility for direct thermal image and temperature matrix output
Encased in structural components for enhanced reliability
· Mainstream Interfaces, Easy Development
Standard USB 2.0 digital video output interface
Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~+550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light imaging requires natural light and transforms weak natural light into enhanced electronic images through image intensifiers. Active IR systems actively emit infrared light and use reflected infrared beams from targets, offering poor concealment. Thermal imaging is a passive infrared technology that detects infrared radiation differences between targets and their environment, operating without any light source and remaining unaffected by lighting conditions, night operations, or harsh environments like fog and rain.
Can you block thermal imaging?
In most cases, thermal imaging cannot be blocked. However, infrared radiation cannot penetrate walls, and glass can block IR detection. To avoid detection, concealment behind glass or walls can effectively block thermal imaging.
